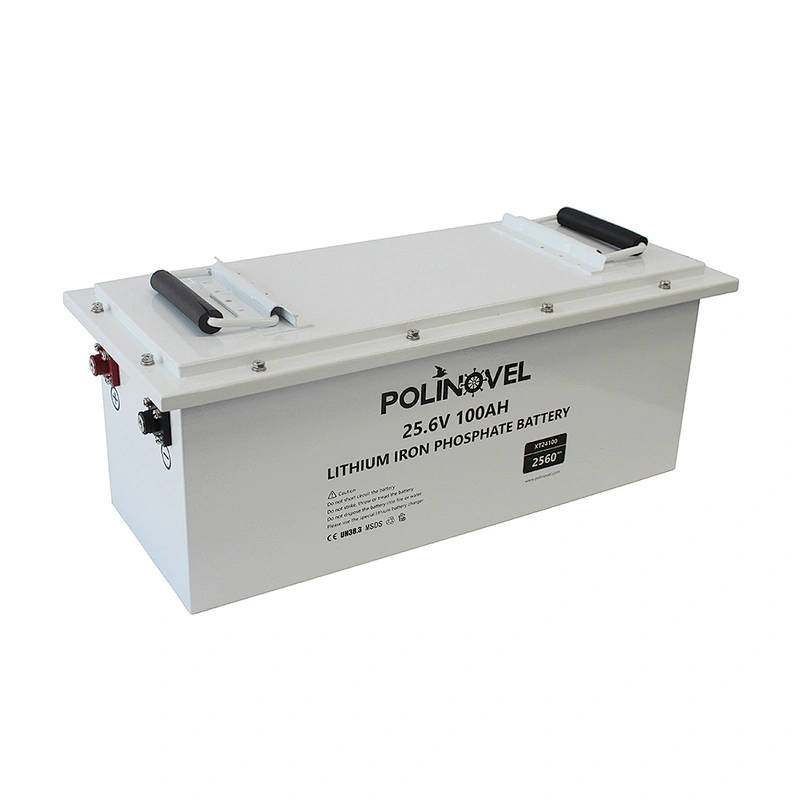

Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery

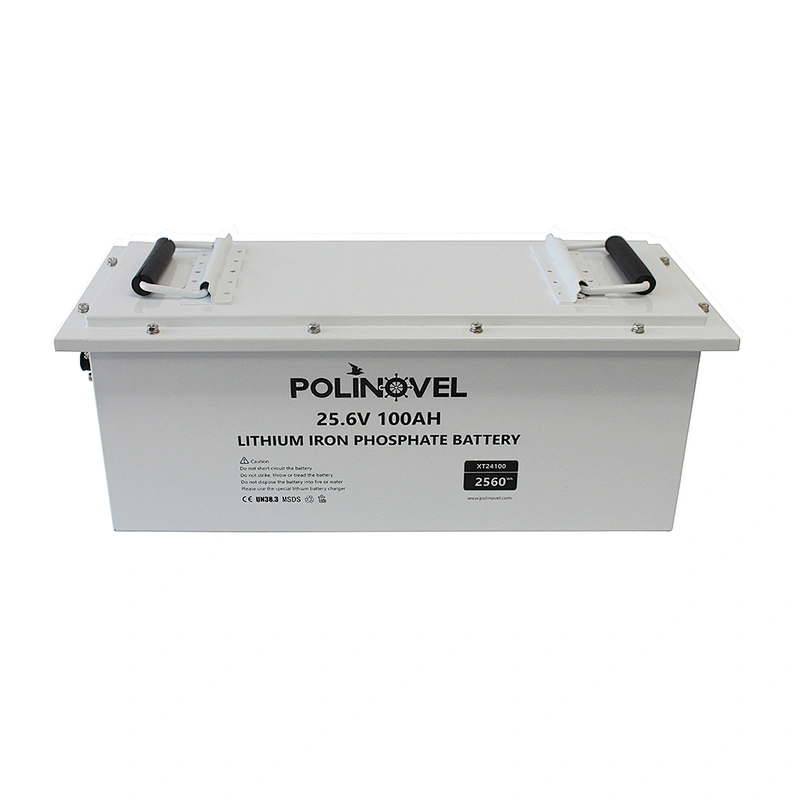

Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery

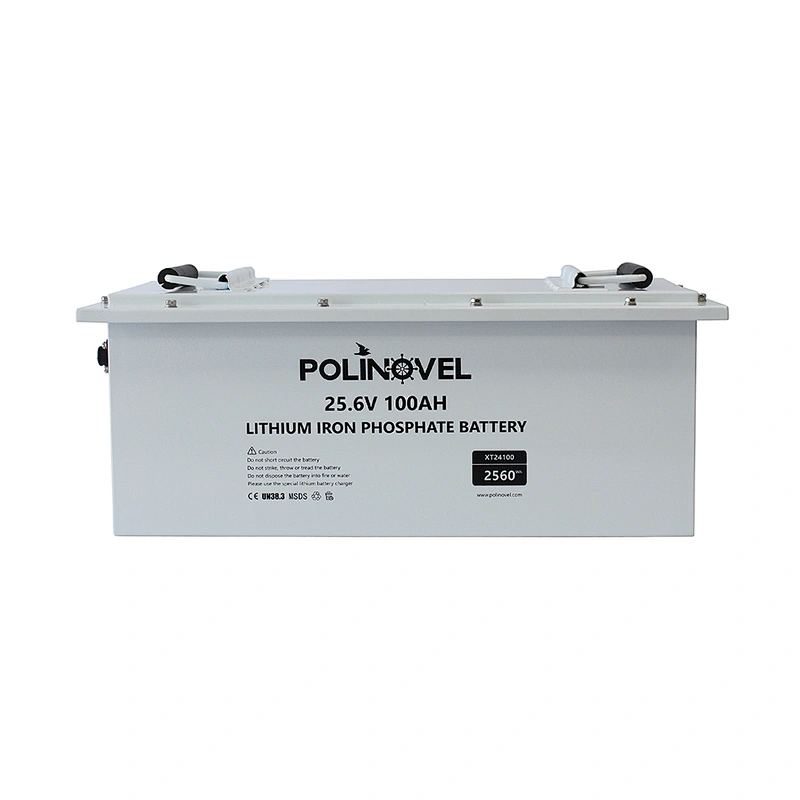

Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery

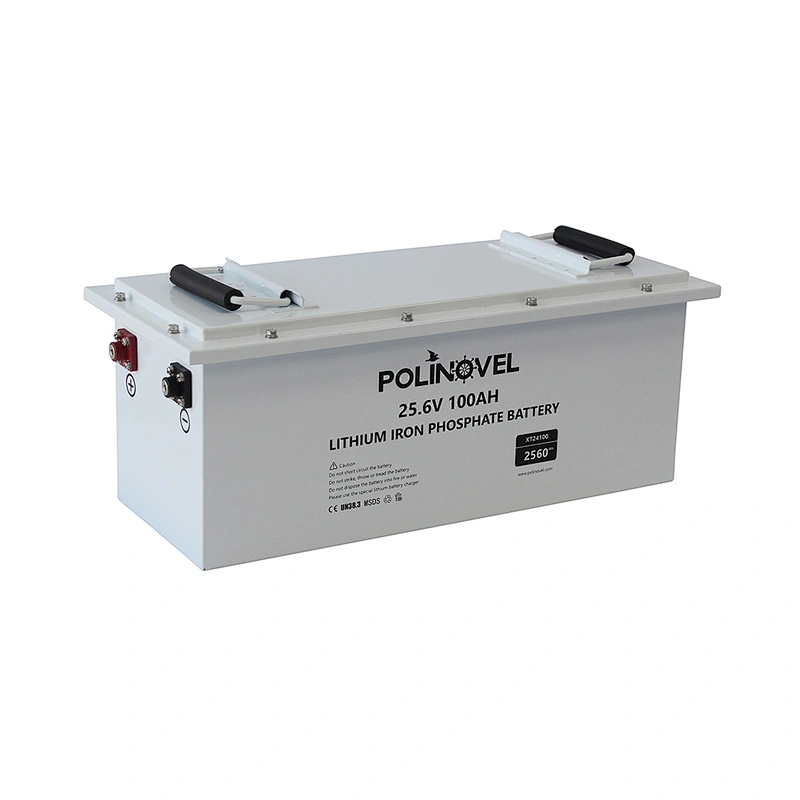

Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery
Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery
Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery
Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery
Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery
Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery
Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery
Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery

Polinovel 24v 100ah solar RV marine golf cart forklift lifepo4 lithium-ion battery

Model NO.
XT24100
Delivery:
FOB, CIF
Minimum order quantity:
1 unit
Supply Ability:
50000 unit / Month
Country of Origin:
Shenzhen,China
Stock Time:
25 to 40 Days
Quantity:
Product Description
Electrical
Parameter
Model
XT24100
Nominal Voltage
25.6V
Nominal Capacity
100Ah
Energy
2560Wh
Internal Resistance
≤20mΩ
Chemistry
LiFePO4 (Lithium Iron Phosphate)
Cycle Life
>6000 cycles @ 0.1C 50% DOD
Self Discharge
<3%/month
Charge Rate
100%
Discharge Rate
100%
Expandable Connection
4pcs in Series or Parallel
Charge
Parameter
Charge Voltage
29.2V
Charge Current
20A~100A
Max. Charge Current
100A
Charge Method
CC/CV
Discharge
Parameter
Constant Discharge Current
100A
Pulse Discharge Current
200A (<5s)
Discharge Cut-ioff Voltage
20V
Machanical
Parameter
Battery Case
SPCC Steel /  Aluminium /  Stainless Steel

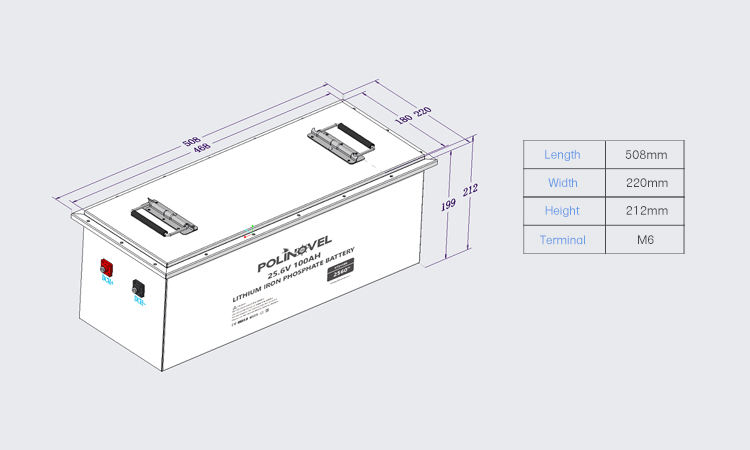

Approx. Dimension
508*220*212mm
Approx. Weight
23.5kg

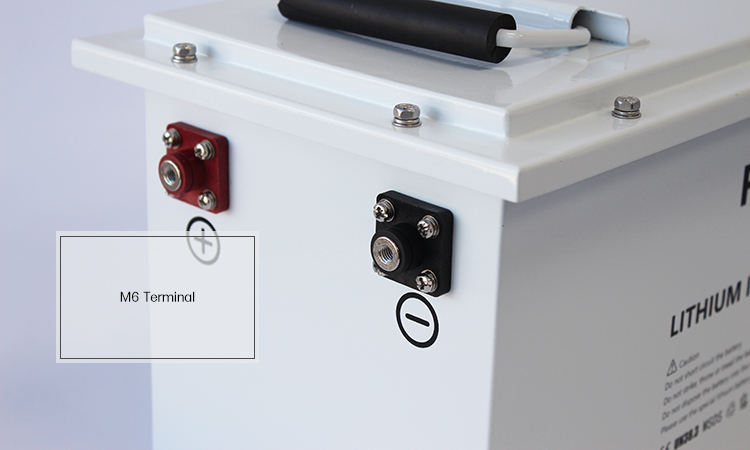

Terminal
M6
Environmental Parameter
Charge Temperature
0~45ºC (32 to 113ºF)
Discharge Temperature
-20~60ºC (-4 to 140ºF)
Storage Temperature
-20~45ºC (-4 to 113ºF)
IP Class
IP65

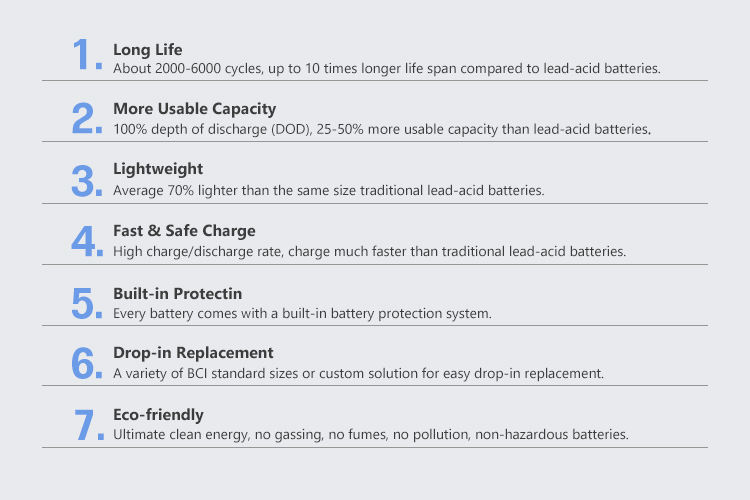

Product Advantages

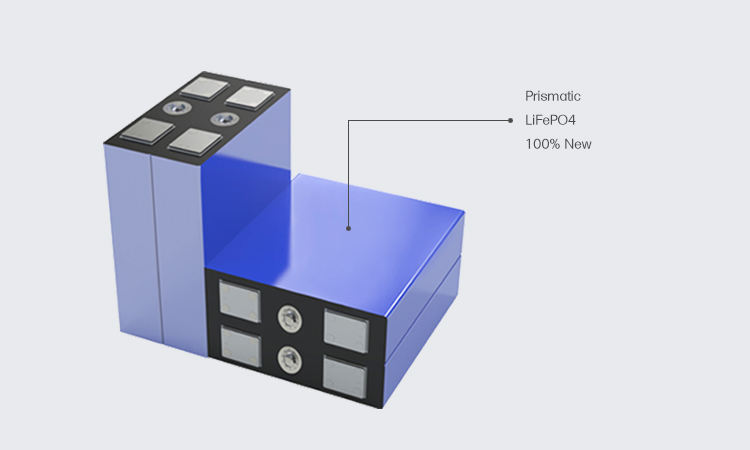

Grade-A Quality Cell

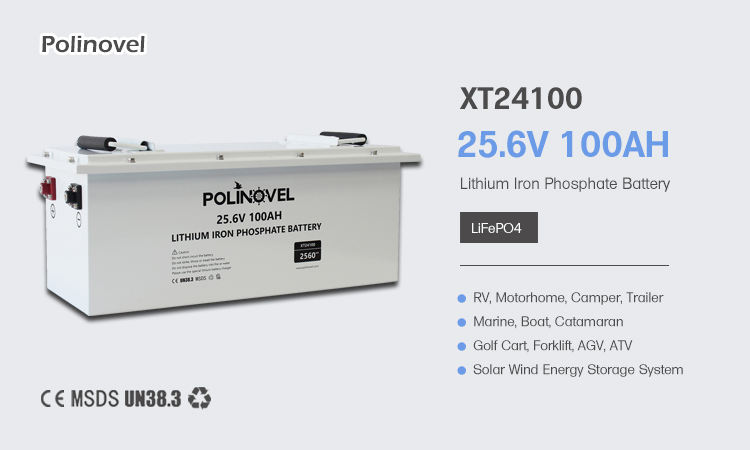

Polinovel XT24100 model 24V 100Ah lithium battery pack utilizes grade-A quality 3.2V 100Ah prismatic lifepo4 battery cells, every cells are proven 100% new and strictly capacity graded to ensure high conformity of cells used in battery module.

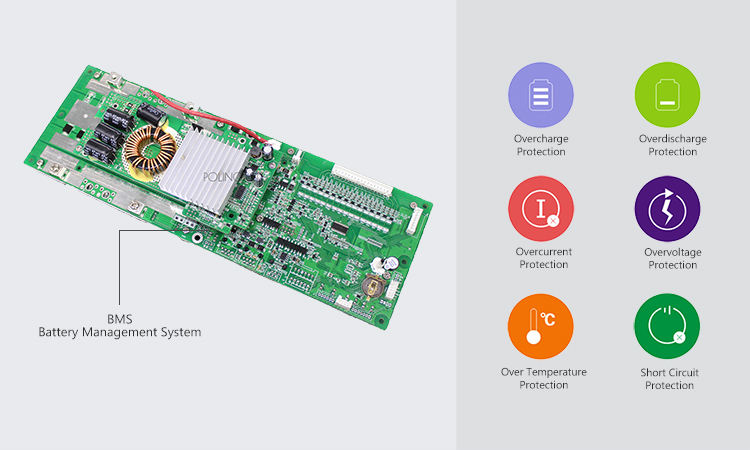

Multiple Protection BMS
The lithium battery features an elegant BMS that provides multiple protections to keep the battery operating safely:
-Overcharge protection function -Overdischarge protection function
-Over current protection function -Over voltage protection function
-Temperature protection function -Short circuit protection function

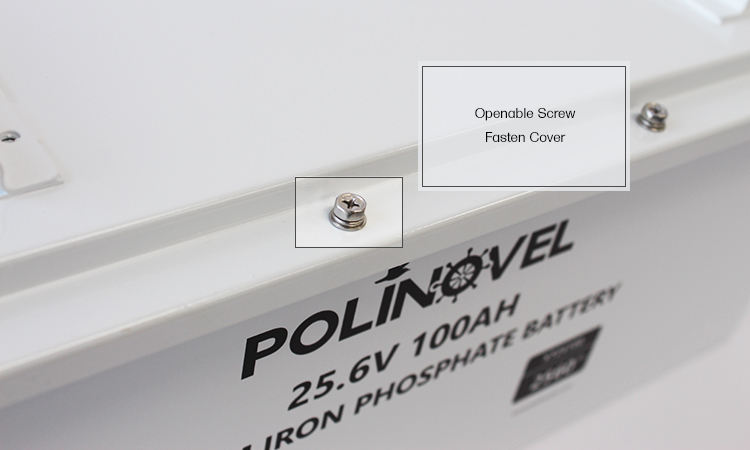

Openable Cover
The battery case and the cover are fixed together with screws, this openable design provides freedom and flexibility. When the battery is abnormal, you can do simple troubleshooting and recovery without damaging the battery case when the battery is abnormal.
Fire Resistance Cap
Protective caps are added to the positive and negative terminals of the battery, the ABS+PBT flame-retardant material has excellent insulation, weather resistance, moisture resistance, chemicals resistance. It reduces the risk of explosion caused by sparks, keeps the battery safe and clear without dust, wet, rust or corrosion.

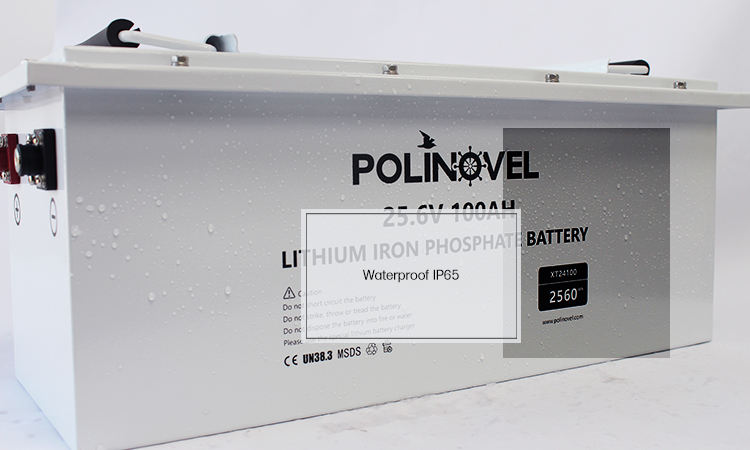

IP65 / Anti-Rust/ Anti-Corrosion
Waterproof battery case design, surface with 250℃ high temperature baking paint processing, can meet IP65 standard, anti-rust and anti-corrosion, that is ideal for marine, boat, kayak etc watercrafts.

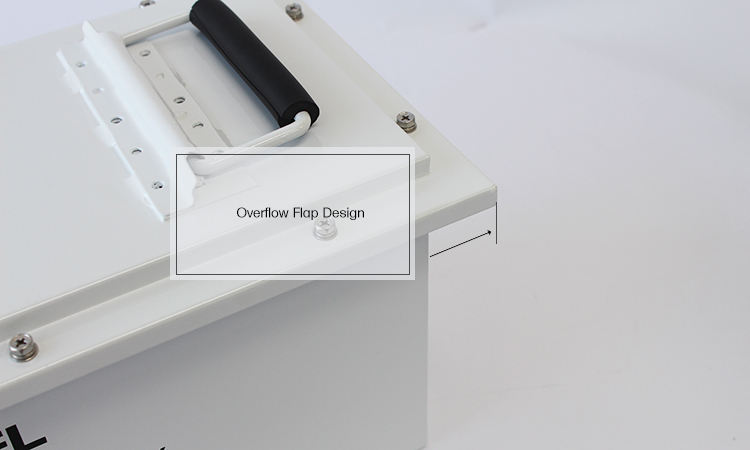

Enhanced Waterproof Performance
The battery cover extends outwards can drain water away better, and the concealed downward sealing gap protect the battery from water in probability.

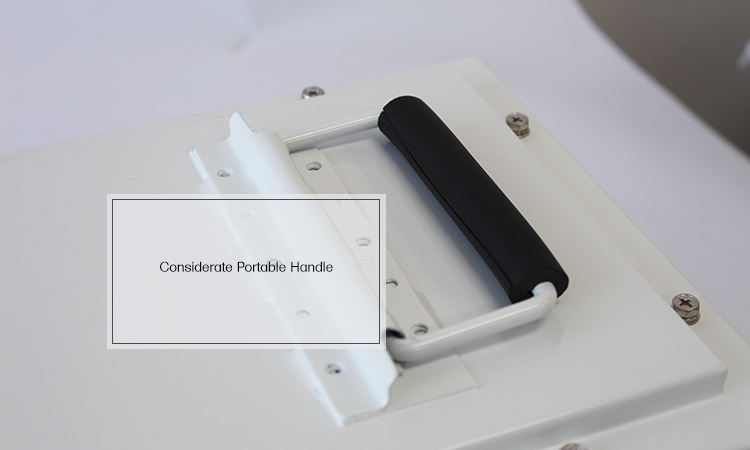

Portable Handle
The battery is portable, easy to carry and adjust the position during installation. The soft plastic material is comfortable to hold and does not hurt your hands.

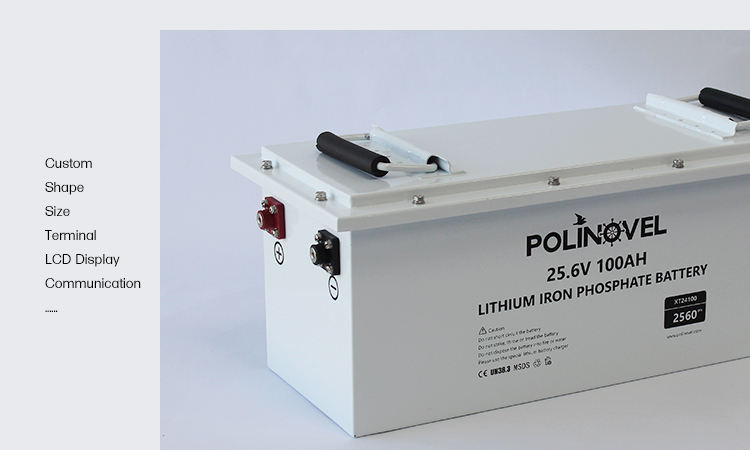

Custom Service
Polinovel provides custom service to tailored the battery shape, size, terminal to meet your specific requests. Additional functions also reliable, like LCD dispaly SOC, RS232, RS485, CanBus etc communication port.

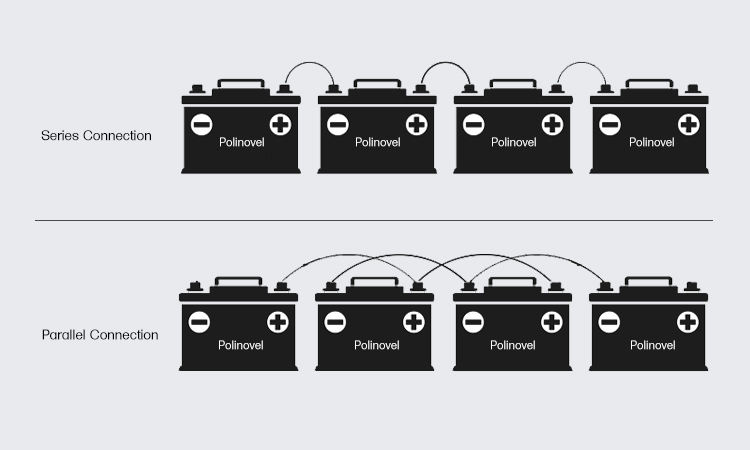

Scalable Battery System
The batteries support (4S) series or (4P) parallel connection so you can scale your system to provide increased power and energy (up to 96V or 400Ah) as needed.
Wide Application
Polinovel offering extensive lithium batteries that are reliably installed in RV, Camper, Trailer, Marine, Bass Fishing Boat Trolling Motorm, AGV ATV, Forklift, Floor Machine, Golf Cart Trolley, Solar Power Energy System etc.
