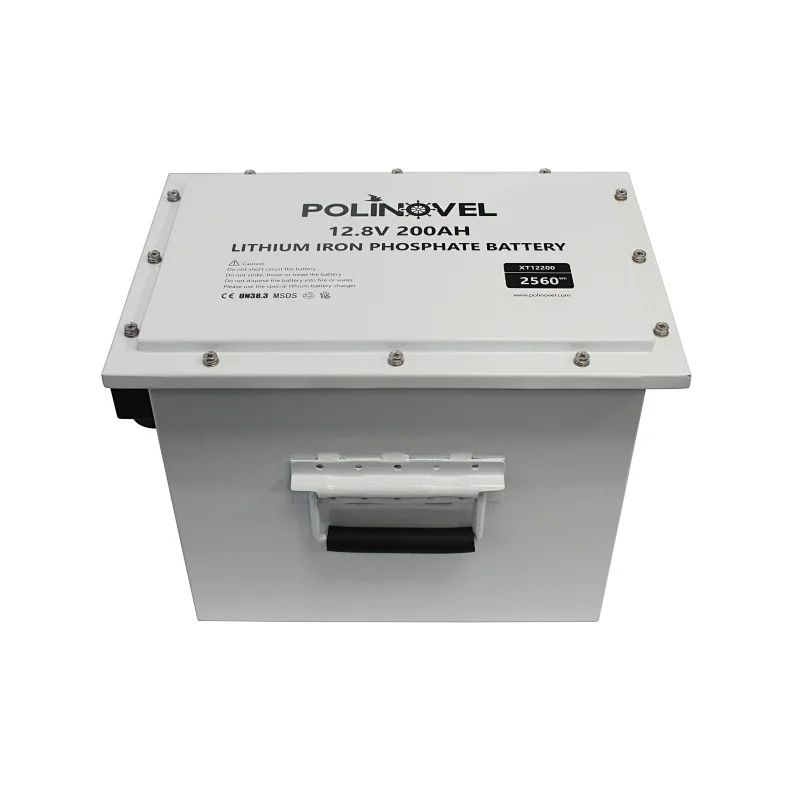

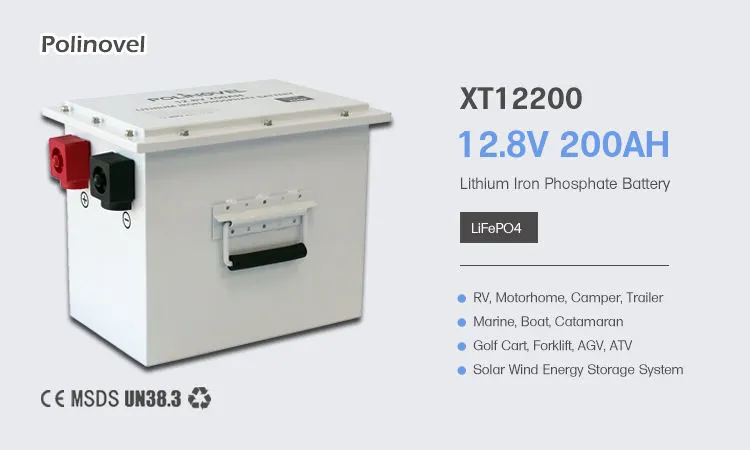

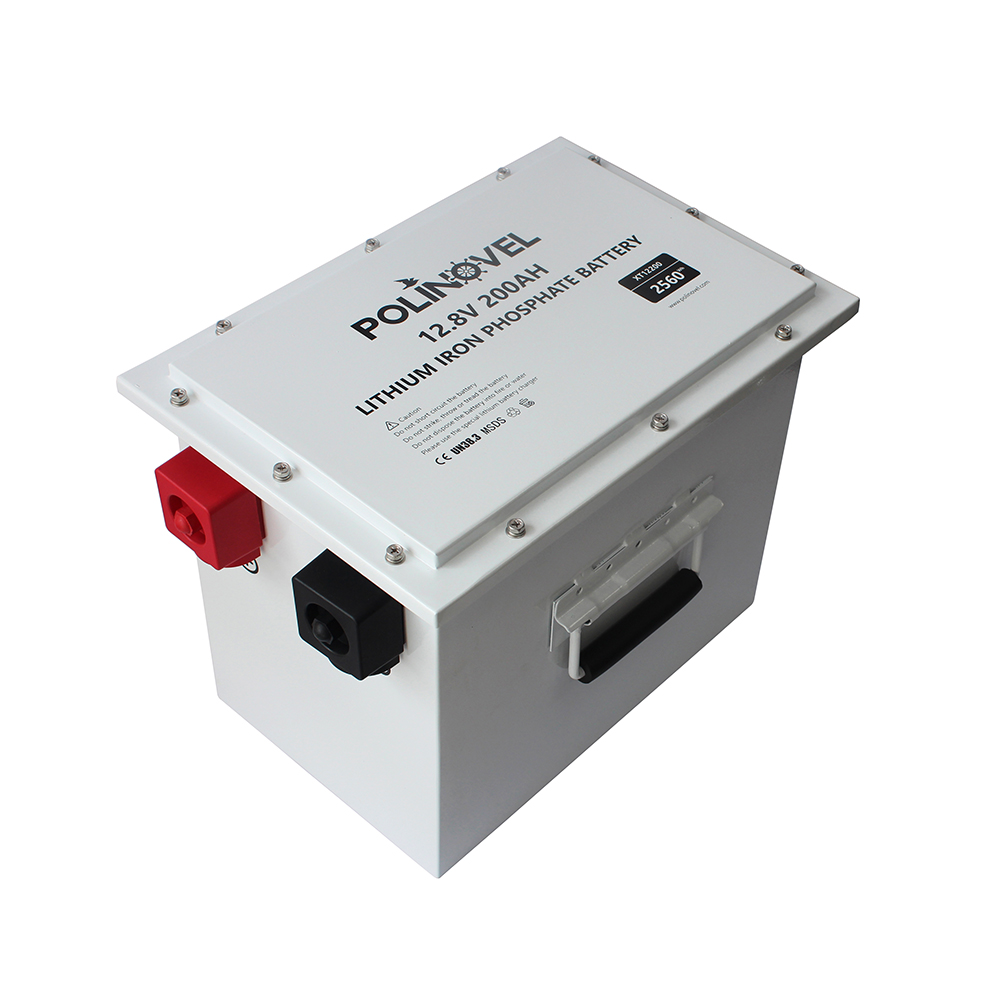

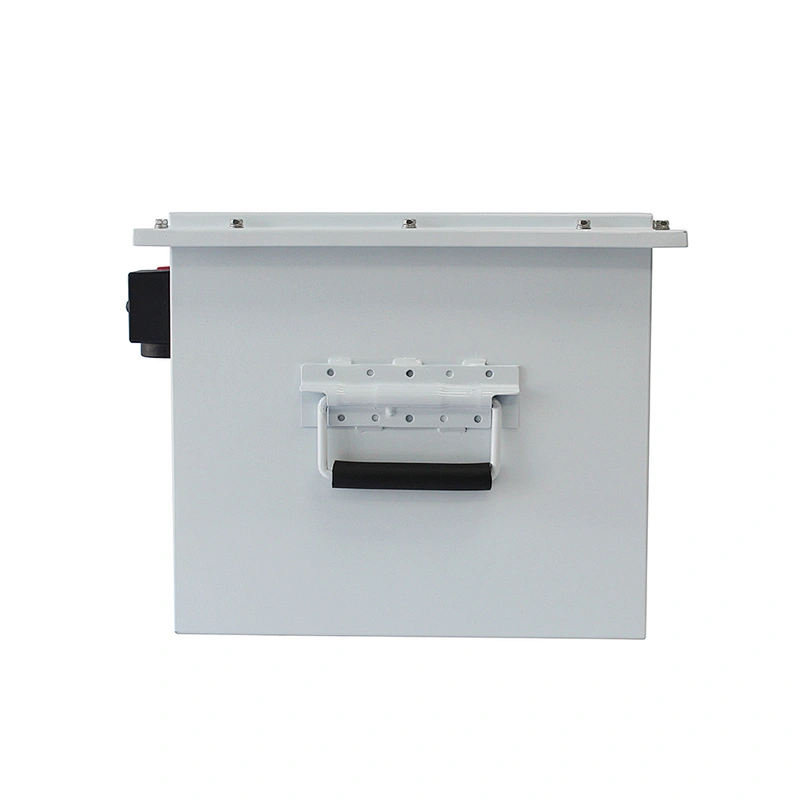

Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery
Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery

Polinovel 100% DOD solar marine camper trailer lithium ion phosphate lifepo4 12v 200ah battery

Model NO.
XT12200
Delivery:
FOB, CIF
Minimum order quantity:
1 unit
Supply Ability:
50000 unit / Month
Country of Origin:
Shenzhen,China
Stock Time:
25 to 40 Days
Quantity:
Product Description











Electrical
Parameter
ModelXT12200
Nominal Voltage12.8V
Nominal Capacity200Ah
Energy2560Wh
Internal Resistance≤20mΩ
ChemistryLiFePO4 (Lithium Iron Phosphate)
Cycle Life>6000 cycles @ 0.1C 50% DOD
Self Discharge<3%/month
Charge Rate100%
Discharge Rate100%
Expandable Connection4pcs in Series or Parallel



Charge
Parameter
Charge Voltage14.6V
Charge Current40A~100A
Max. Charge Current100A
Charge MethodCC/CV



Discharge
Parameter
Constant Discharge Current100A
Pulse Discharge Current200A (<5s)
Discharge Cut-off Voltage10V



Mechanical
Parameter
Battery CaseSPCC Steel /  Aluminium /  Stainless Steel

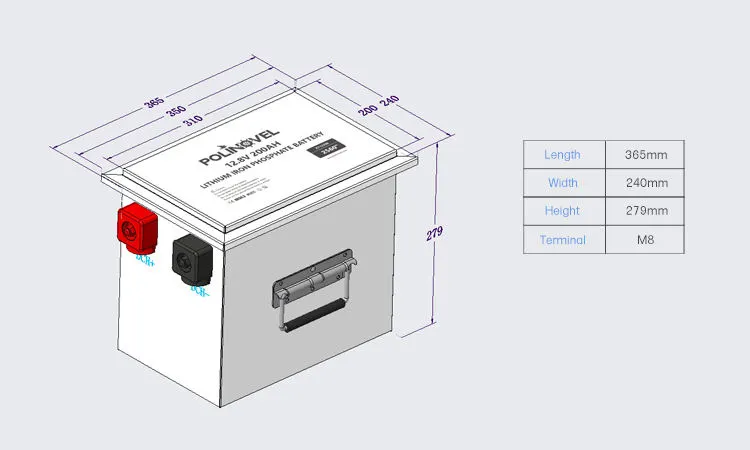

Approx. Dimension365*240*279mm
Approx. Weight23.5kg
TerminalM8



Environmental Parameter
Charge Temperature0~45ºC (32 to 113ºF)
Discharge Temperature-20~60ºC (-4 to 140ºF)
Storage Temperature-20~45ºC (-4 to 113ºF)
IP ClassIP65

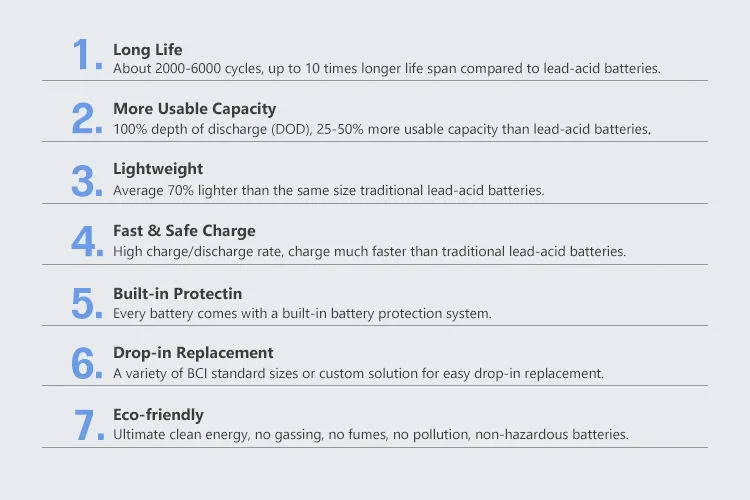

Product Advantages

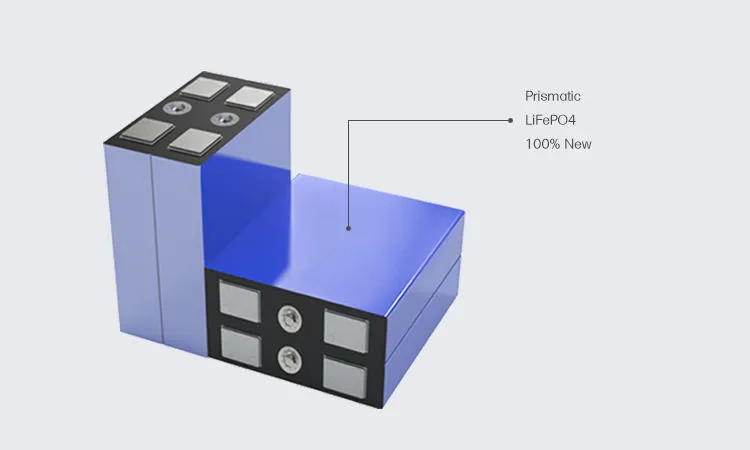

Grade-A Quality Cell
Polinovel XT12200 model 12V 200Ah lithium battery pack utilizes grade-A quality 3.2V 200Ah prismatic lifepo4 battery cells. Every cell is proven 100% new and strictly capacity graded to ensure high conformity of cells used in the battery module.

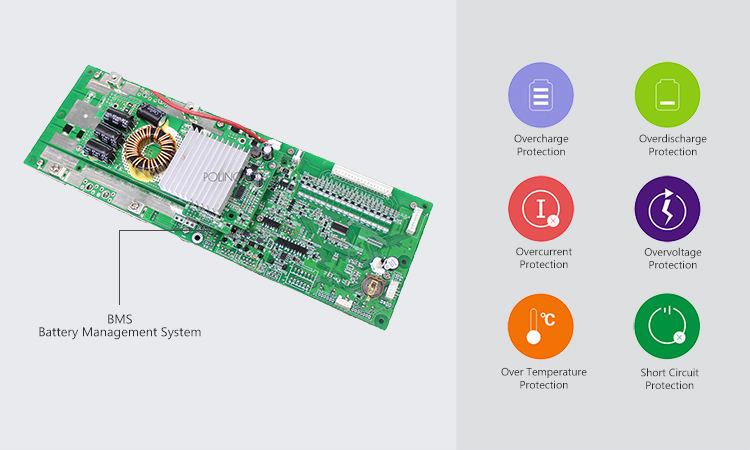

Multiple Protection BMS
The lithium battery features an elegant BMS that provides multiple protections to keep the battery operating safely:
-Overcharge protection function -Over-discharge protection function
-Overcurrent protection function -Overvoltage protection function
-Temperature protection function -Short circuit protection function

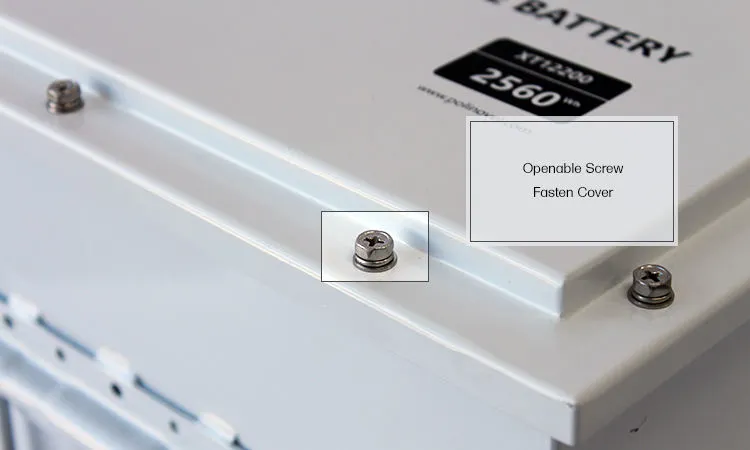

Openable Cover
The battery case and the cover are fixed together with screws. This openable design provides freedom and flexibility. When the battery is abnormal, you can do simple troubleshooting and recovery without damaging the battery case when the battery is strange.

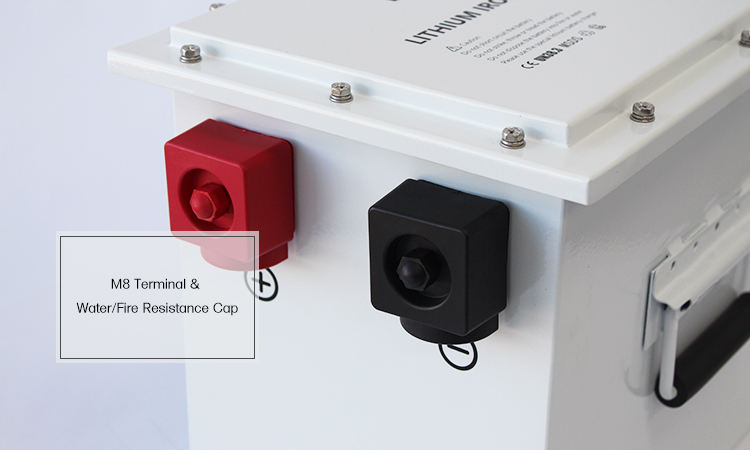

Fire Resistance Cap
Protective caps are added to the positive and negative terminals of the battery. The ABS+PBT flame-retardant material has excellent insulation, weather resistance, moisture resistance, chemicals resistance. In addition, it reduces the risk of explosion caused by sparks keeps the battery safe and clear without dust, wet, rust, or corrosion.

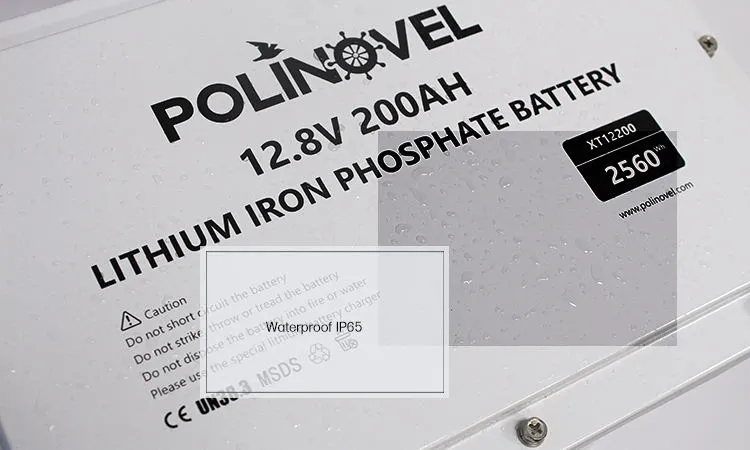

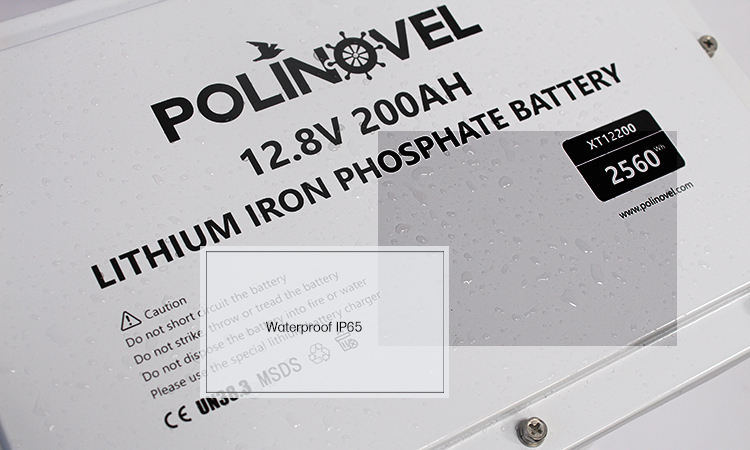

IP65 / Anti-Rust/ Anti-Corrosion
Waterproof battery case design, surface with 250℃ high-temperature baking paint processing, can meet the IP65 standard, anti-rust, and anti-corrosion, ideal for marine, boat, kayak, etc. watercraft.

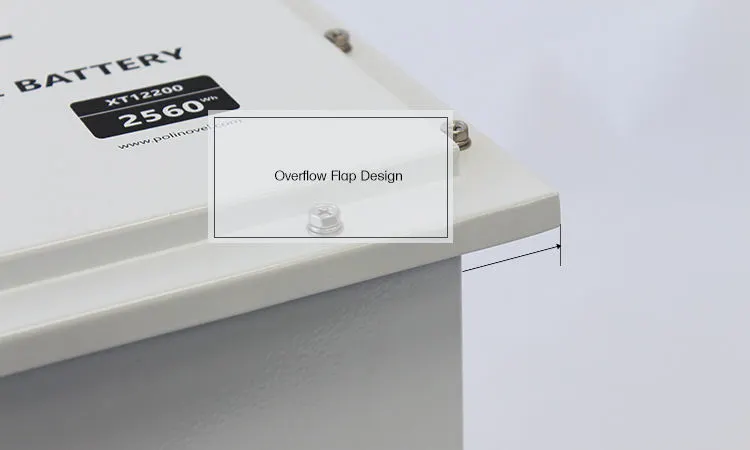

Enhanced Waterproof Performance
The battery cover extends outwards can drain water away better, and the concealed downward sealing gap protect the battery from water in probability.

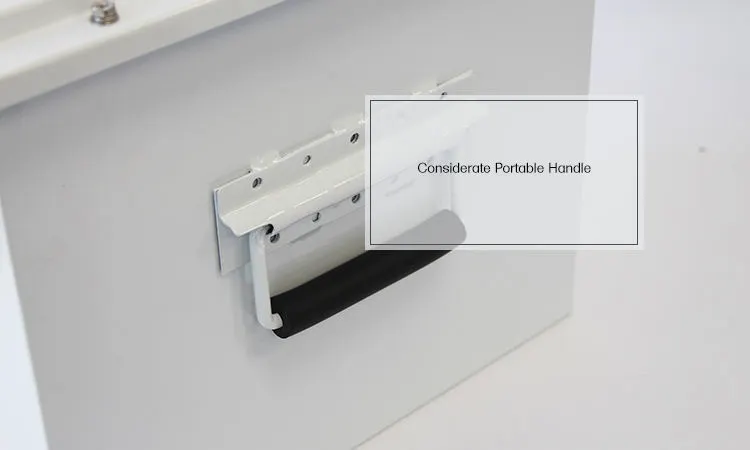

Portable Handle
The battery is portable, easy to carry, and adjusts the position during installation. In addition, the soft plastic material is comfortable to hold and does not hurt your hands.

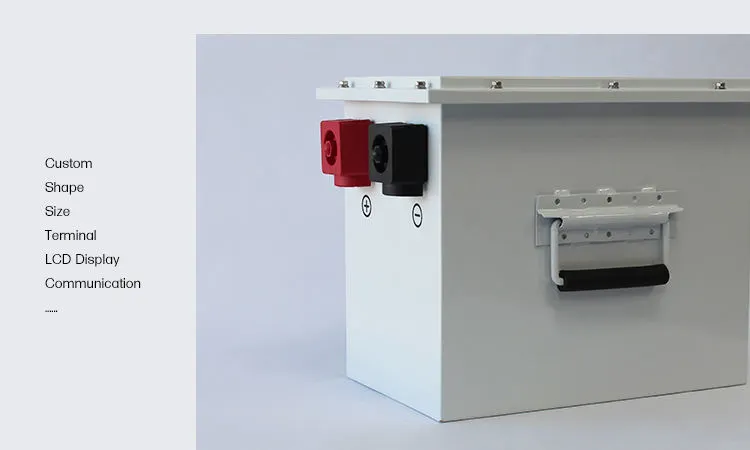

Custom Service
Polinovel provides custom service to tailored the battery shape, size, terminal to meet your specific requests. Additional functions also reliable, like LCD dispaly SOC, RS232, RS485, CanBus etc communication port.

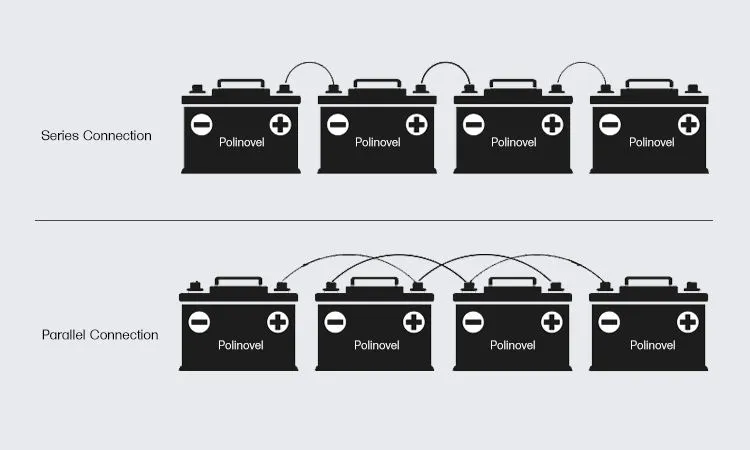

Scalable Battery System
The batteries support (4S) series or (4P) parallel connection so you can scale your system to provide increased power and energy (up to 48V or 800Ah) as needed.
Wide Application
Polinovel offering extensive lithium batteries that are reliably installed in RV, Camper, Trailer, Marine, Bass Fishing Boat Trolling Motorm, AGV ATV, Forklift, Floor Machine, Golf Cart Trolley, Solar Power Energy System etc.
