Model NO.
BESS5
Delivery:
FOB, CIF
Minimum order quantity:
1 unit
Supply Ability:
50000 unit / Month
Country of Origin:
Shenzhen, China
Stock Time:
25 to 40 Days
Quantity:

5kwh lithium-ion lifepo4 solar storage home UPS

Main Advantages
Good performance in harsh environment
Effective customize technical solution
High quality and punctual delivery
Trustworthy innovative lithium battery manufacturer


Brief Introduction
The main reason to choose an lithium battery is the safety and quality. If you plan to buy a battery to power your appliances in boat, RV, camper and to store the electricity of solar system or as trolling motor power supply, Polinovel battery is a trustworthy choice.Polinovel lithium iron phosphate batteries have many uses and are commonly used in golf carts, mobility vehicles, e-bike, e-scooter, automated guided vehicle (AGV), automotive, marine, boat, medical devices, telecommunication and much more.The performance of our LFP battery is good. It is often employed in energy storage and driving traction that require a long lifespan and a good level of safety.The Polinovel solar power home battery is a lithium iron phosphate battery. This is one of the most safety lithium-ion battery technologies, and for good reason: relative to other types of batteries, LFP batteries are known for their high safety performance.The use of solar power and other renewable energy sources, which have unstable output, continues to increase, power supply to the entire grid could become unstable. We need battery energy storage system to stores electrical power.

And grids deliver electricity in real-time, meaning electricity is being consistently produced to meet consumer demand. As a result, electricity generation systems are built to meet peak demand. Battery energy storage enables a lower cost generating source to produce electricity at a different point in time to be stored and then used to meet times of peak demand.

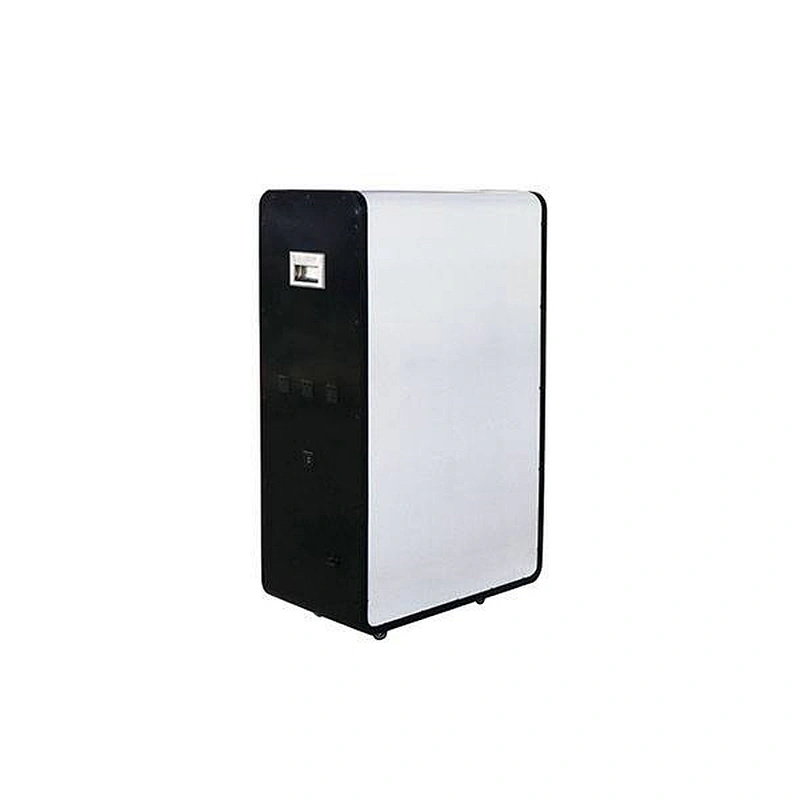

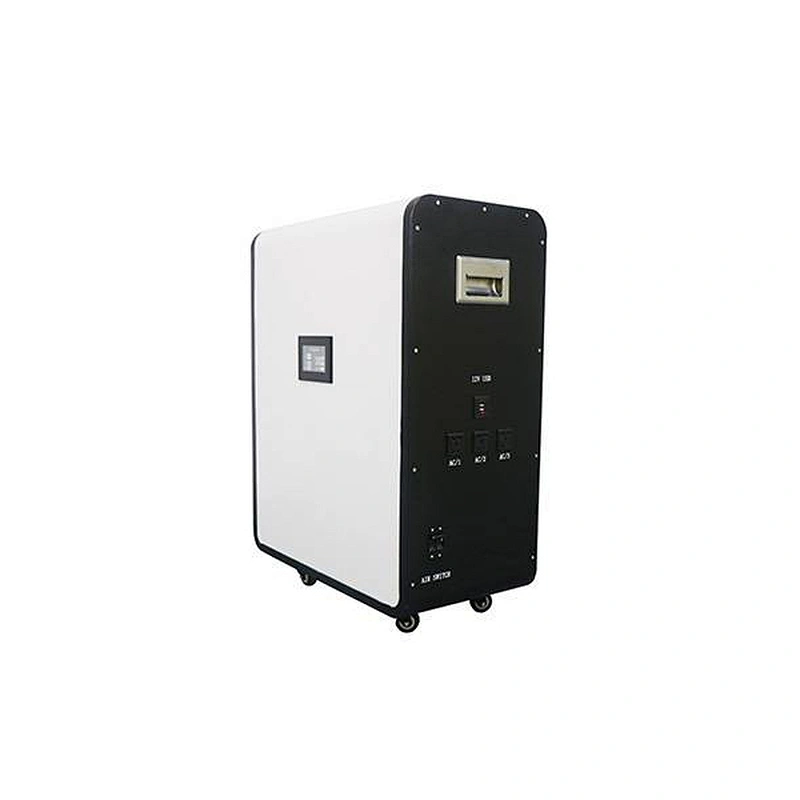

Polinovel BESS5, comes with 5.2kwh of reserve electricity, measures 803mm*653mm*353mm is protected by a SPCC steel with 250℃ high temperature baking paint housing. It weighs 90kg and is equipped with rolling foot wheel and fixed leg that make moving easier. Unlike diesel generators, the BESS batteries are silent, perfect for use around in tranquil locations.


Basic Parameter

BATTERY BANK SPECIFICATION
Battery Information: 51.2V 102Ah
Power Storage Capacity: 5.2KWh
Max Charge Voltage: 58.4V
Discharge Cut-off Voltage: 40V
Recommend Charge Current: 20 – 100A (5KW Inverter) / 20 – 60A (3KW Inverter)
Max Continuous Discharge Current: 100A (5KW Inverter) / 60A (3KW Inverter)

SOLAR CONTROLLER SPECIFICATION
Maximum PV Array Power: 4.5KW / 5.5KW
Maximum PV Array Voc: 145Vdc / 450Vdc
MPPT Range @ Operating Voltage: 60Vdc – 115Vdc / 120Vdc – 430Vdc
Max Solar Charging Current: 80A
Maximum Efficiency: 98%

SOLAR INVERTER SPECIFICATION
Wave Form: Pure Sine Wave
AC Voltage Range: 220 – 240Vac (5KW Inverter) / 110 – 120Vac (3KW Inveter)
Frequency Range: 50Hz / 60Hz (Auto Sensing)
Max AC Output Current: 60A (5KW Inverter) / 40A (3KW Inverter)

ELECTRICITY INTERFACE DETAILS
Solar DC Charge Interface: Wiring type interface Or MC4; Quantity: 1 unit.
AC Charge Interface: Wiring type interface; Quantity: 1 unit.
AC Output Interface: Interface type: Socket type or wiring type; Quantity: 3 units. (Customized as required)
DC Output Interface: 5V/2A Dual USB Port; Quantity: 1 unit.
Master Switch: Air Switch; Quantity: 1 unit.
GPRS WiFi Monitoring Port: Optional

PHYSICAL INFORMATION
BESS Weight: 90kg (±5) Kg
BESS Size: 803x653x353 (±3) mm
Gross Weight: 105kg (±5) Kg
Plywood Packing Size: 930x745x500 (±5) mm

ENVIRONMENT INFORMATION
Working Temperature & Humidity Range: 0~60℃, ≤75%RH
Storage Temperature & Humidity Range : 0~45℃, 45%~75%RH
Installation Altitude (above sea level): <2000m

Curve Reference

Dimension Drawings
