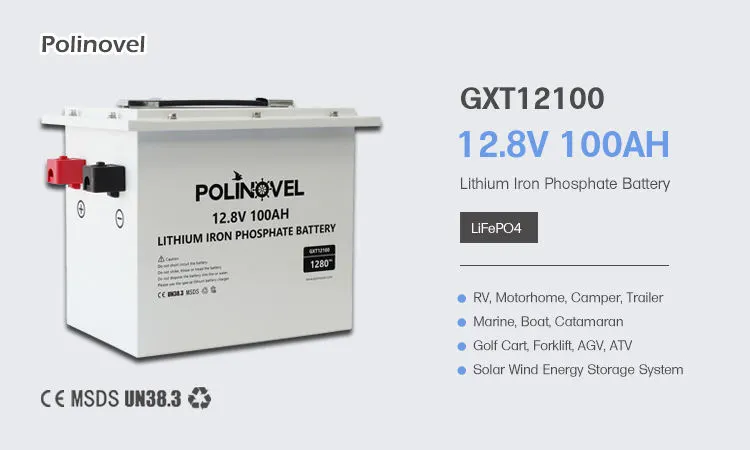

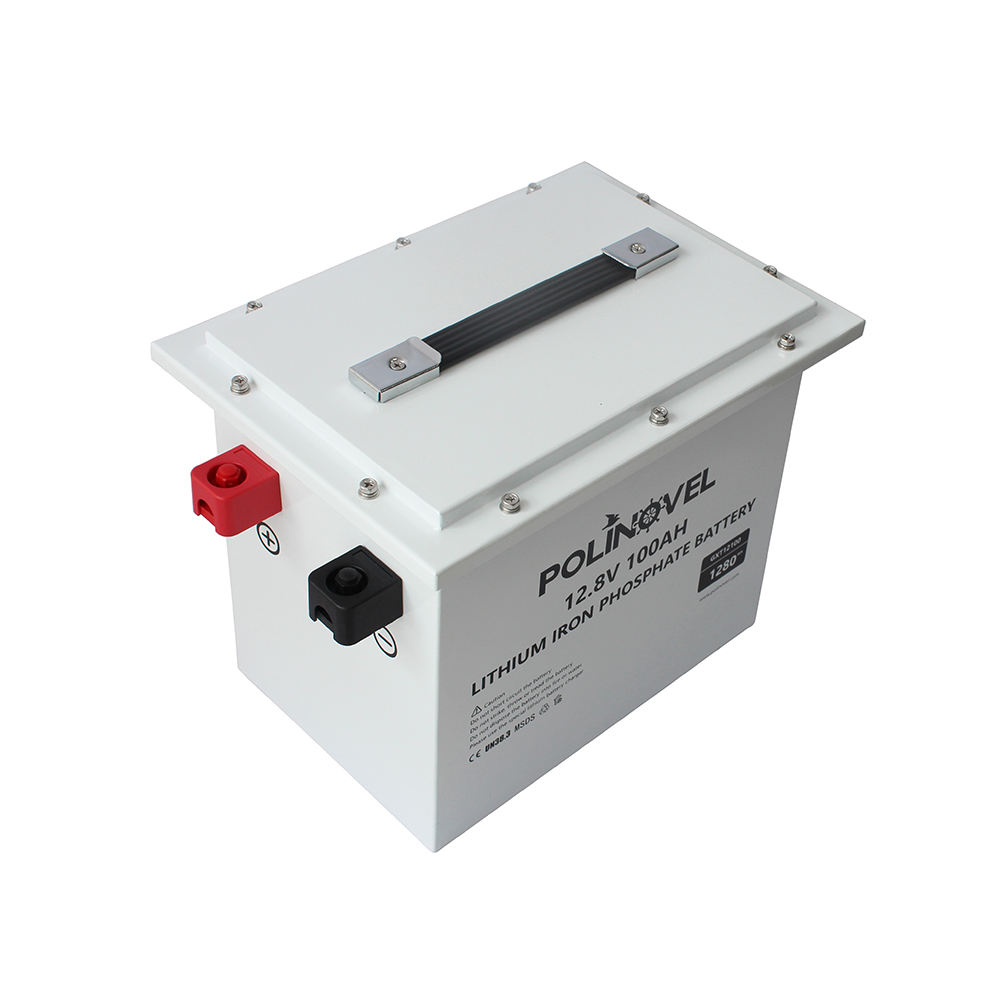

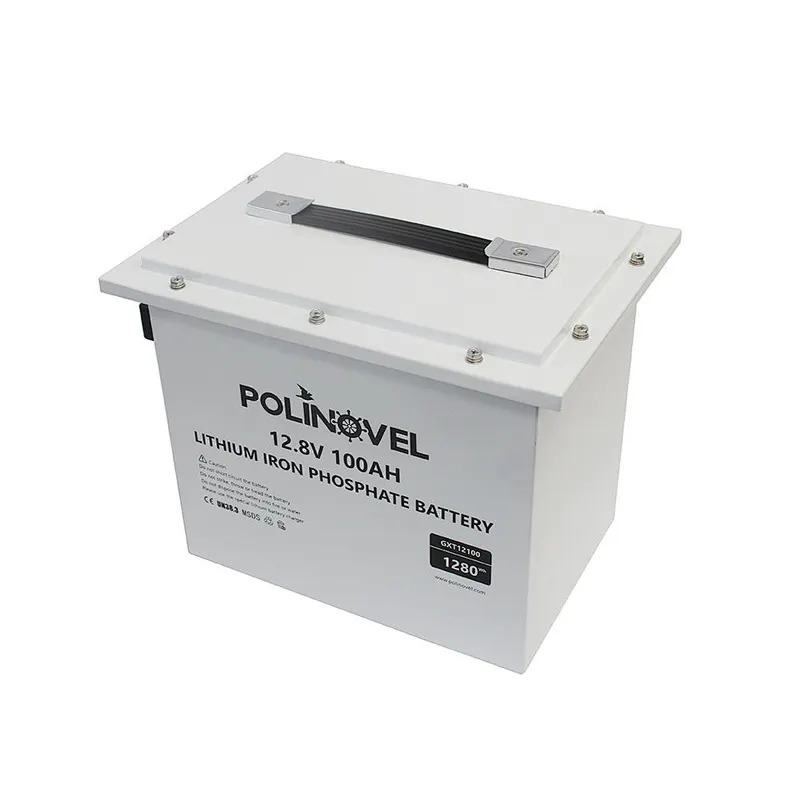

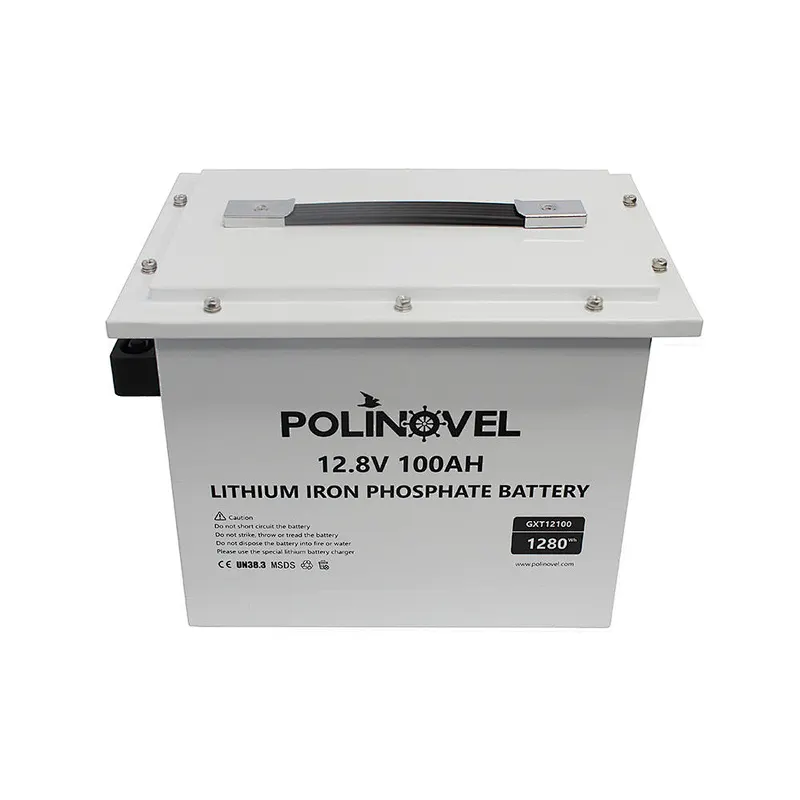

Polinovel custom 12v 100ah lifepo4 lithium ion battery

Product Description

Electrical Parameter	Model	GXT12100
	Nominal Voltage	12.8V
	Nominal Capacity	100Ah
	Energy	1280Wh
	Internal Resistance	≤20mΩ
	Chemistry	LiFePO4 (Lithium Iron Phosphate)
	Cycle Life	>6000 cycles @ 0.1C 50% DOD
	Self Discharge	<3%/month
	Charge Rate	100%
	Discharge Rate	100%
	Expandable Connection	4pcs in Series or Parallel
Charge Parameter	Charge Voltage	14.6V
	Charge Current	20A~100A
	Max. Charge Current	100A
	Charge Method	CC/CV
Discharge Parameter	Constant Discharge Current	100A
	Pulse Discharge Current	200A (<5s)
	Discharge Cut-off Voltage	10V
Mechanical Parameter	Battery Case	SPCC Steel /  Aluminium /  Stainless Steel

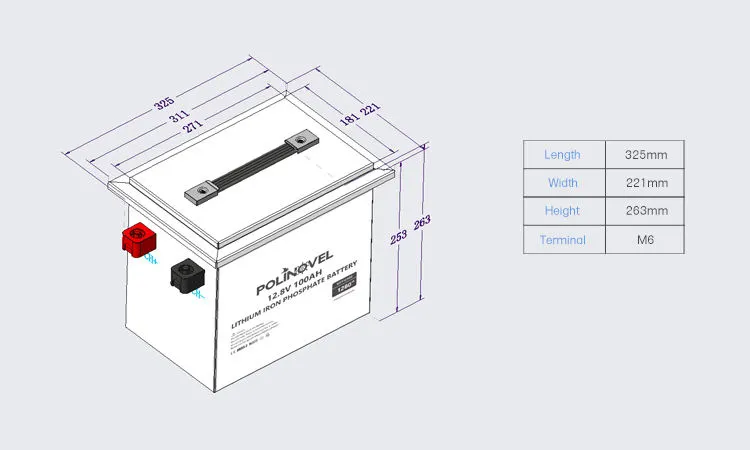

	Approx. Dimension	325*221*263mm
	Approx. Weight	14.5kg
	Terminal	M6
Environmental Parameter	Charge Temperature	0~45ºC (32 to 113ºF)
	Discharge Temperature	-20~60ºC (-4 to 140ºF)
	Storage Temperature	-20~45ºC (-4 to 113ºF)
	IP Class	IP65

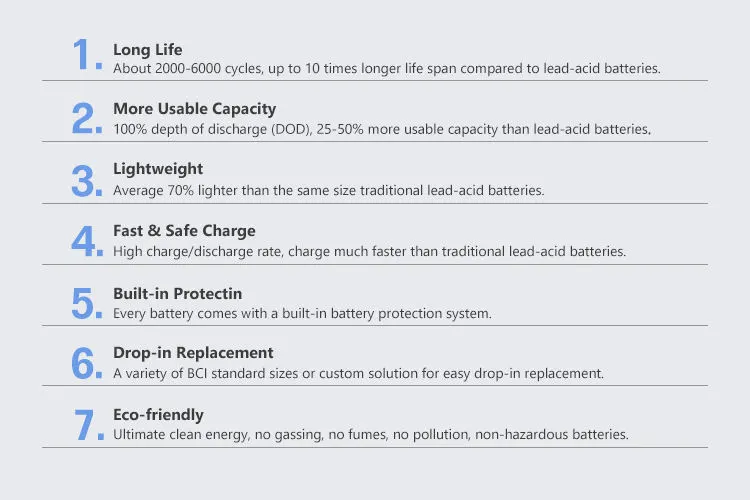

Product Advantages

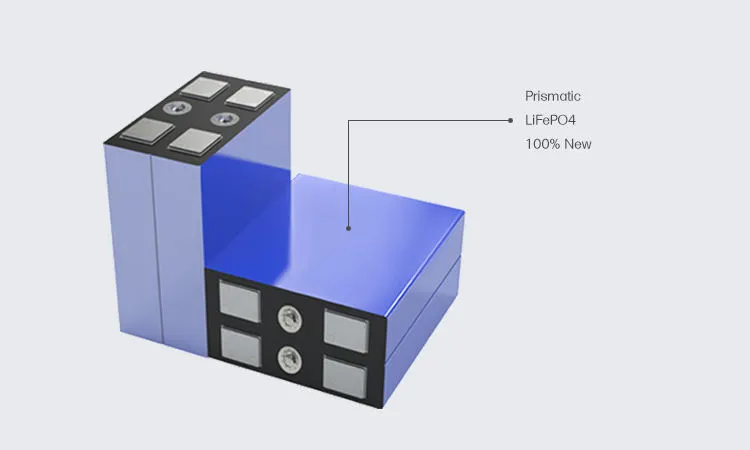

Grade-A Quality Cell
Polinovel GXT12100 model 12V 100Ah lithium battery pack utilizes grade-A quality 3.2V 100Ah prismatic lifepo4 battery cells. All cells are proven 100% new and strictly capacity graded to ensure high conformity of cells used in the battery module.

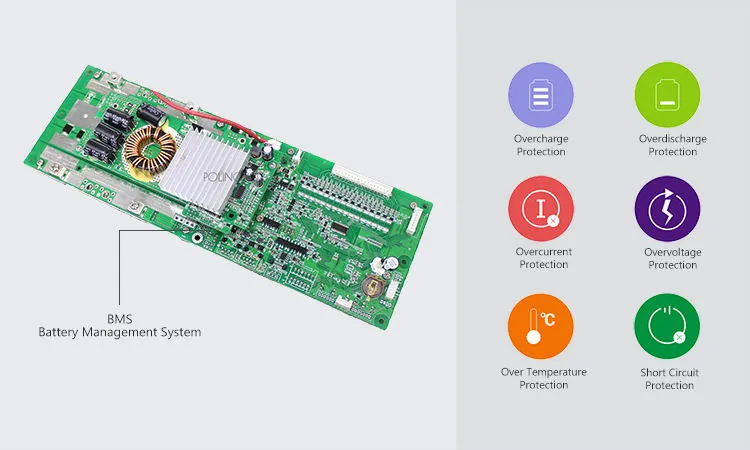

Multiple Protection BMS
The lithium battery features an elegant BMS that provides multiple protections to keep the battery operating safely:
-Overcharge protection function -Over-discharge protection function
-Overcurrent protection function -Overvoltage protection function
-Temperature protection function -Short circuit protection function

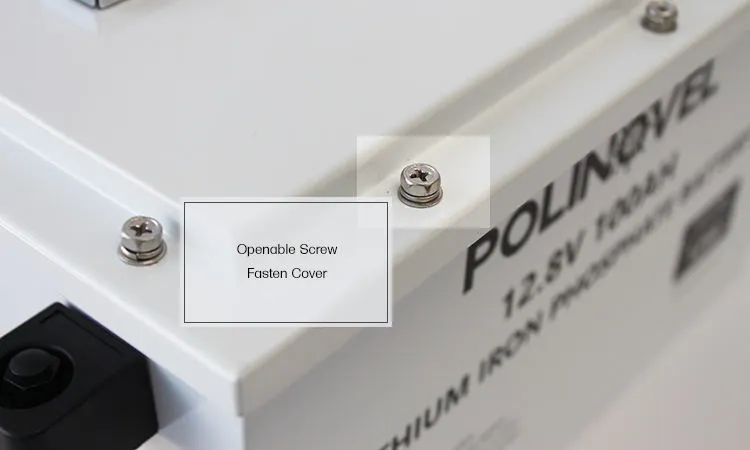

Openable Cover
The battery case and the cover are fixed together with screws; this openable design provides freedom and flexibility. When the battery is abnormal, you can do simple troubleshooting and recovery without damaging the battery case.

Fire Resistance Cap
Protective caps are added to the positive and negative terminals of the battery; the ABS+PBT flame-retardant material has excellent insulation, weather resistance, moisture resistance, chemicals resistance. In addition, it reduces the risk of explosion caused by sparks keeps the battery safe and clear without dust, wet, rust, or corrosion.

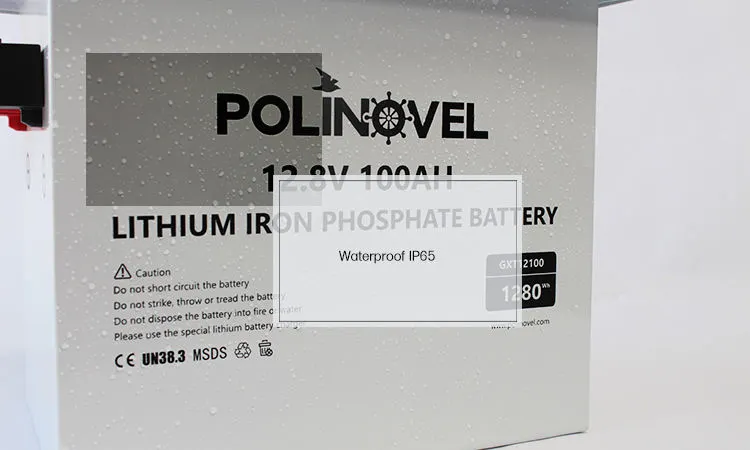

IP65 / Anti-Rust/ Anti-Corrosion
Waterproof battery case design, surface with 250℃ high-temperature baking paint processing, can meet the IP65 standard, anti-rust and anti-corrosion, ideal for marine, boat, kayak, etc. watercraft.

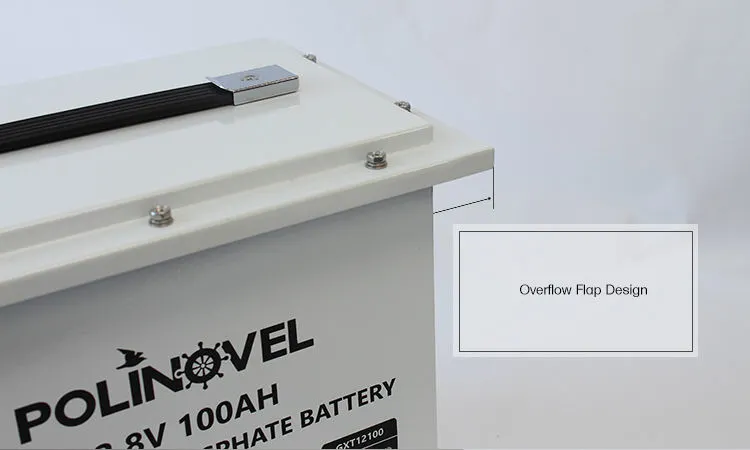

Enhanced Waterproof Performance
The battery cover extends outwards can drain water away better, and the concealed downward sealing gap protect the battery from water in probability.

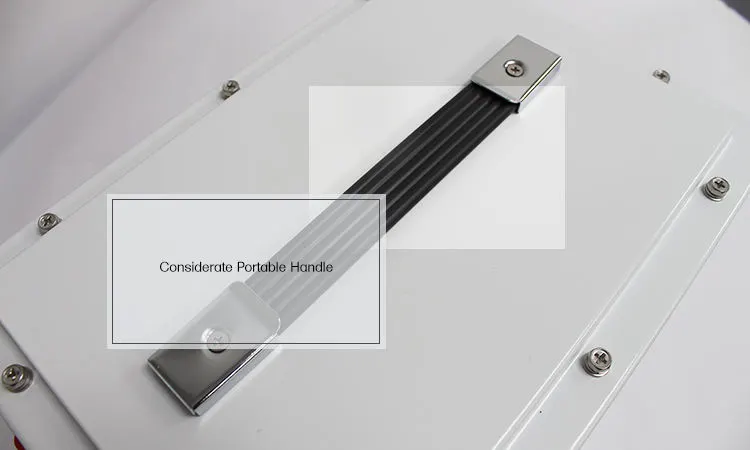

Portable Handle
The battery is portable, easy to carry and adjust the position during installation. The soft plastic material is comfortable to hold and does not hurt your hands.

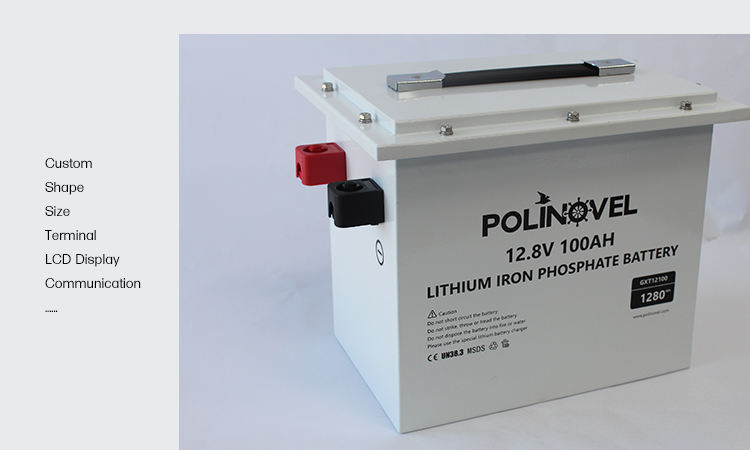

Custom Service
Polinovel provides custom service to tailored the battery shape, size, terminal to meet your specific requests. Additional functions are also reliable, like LCD display SOC, RS232, RS485, CanBus, etc communication port.

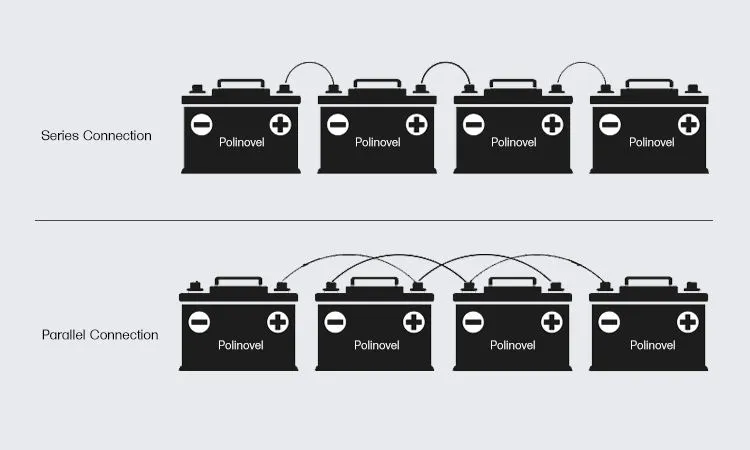

Scalable Battery System
The batteries support (4S) series or (4P) parallel connection so you can scale your system to provide increased power and energy (up to 48V or 400Ah) as needed.

Wide Application
Polinovel offers extensive lithium batteries that are reliably installed in RV, Camper, Trailer, Marine, Bass Fishing Boat Trolling Motor, AGV ATV, Forklift, Floor Machine, Golf Cart Trolley, Solar Power Energy System, etc.
