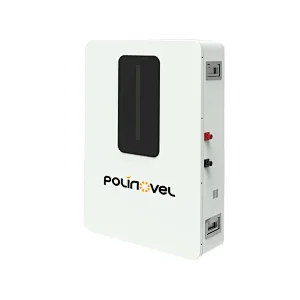

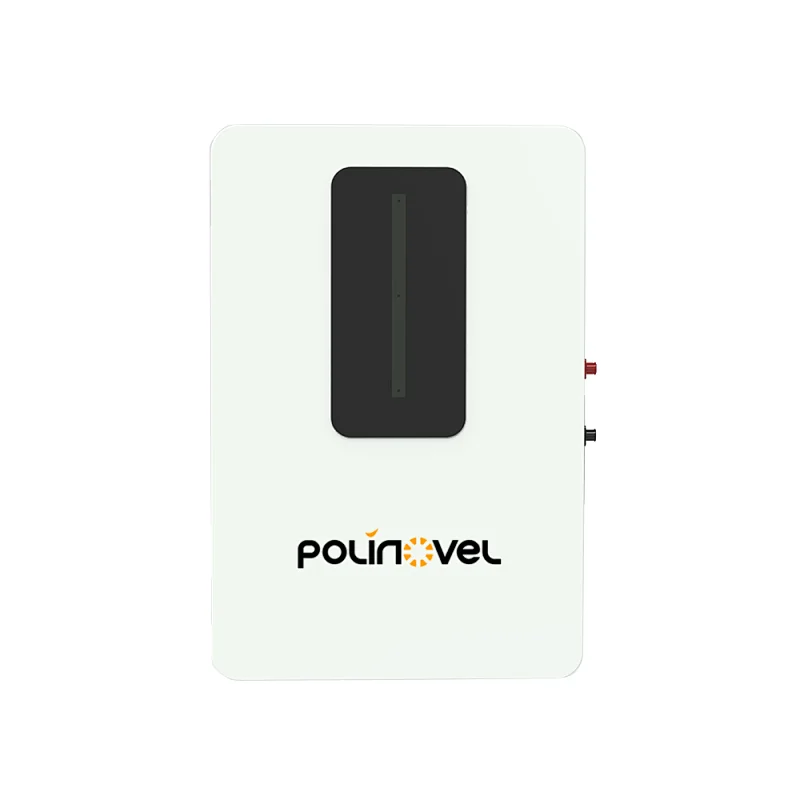

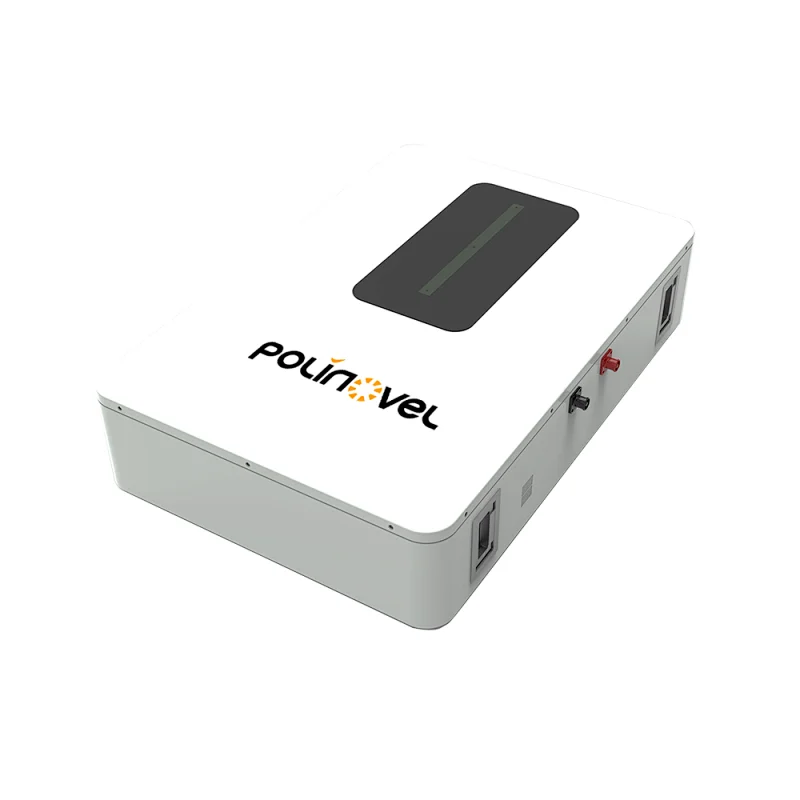

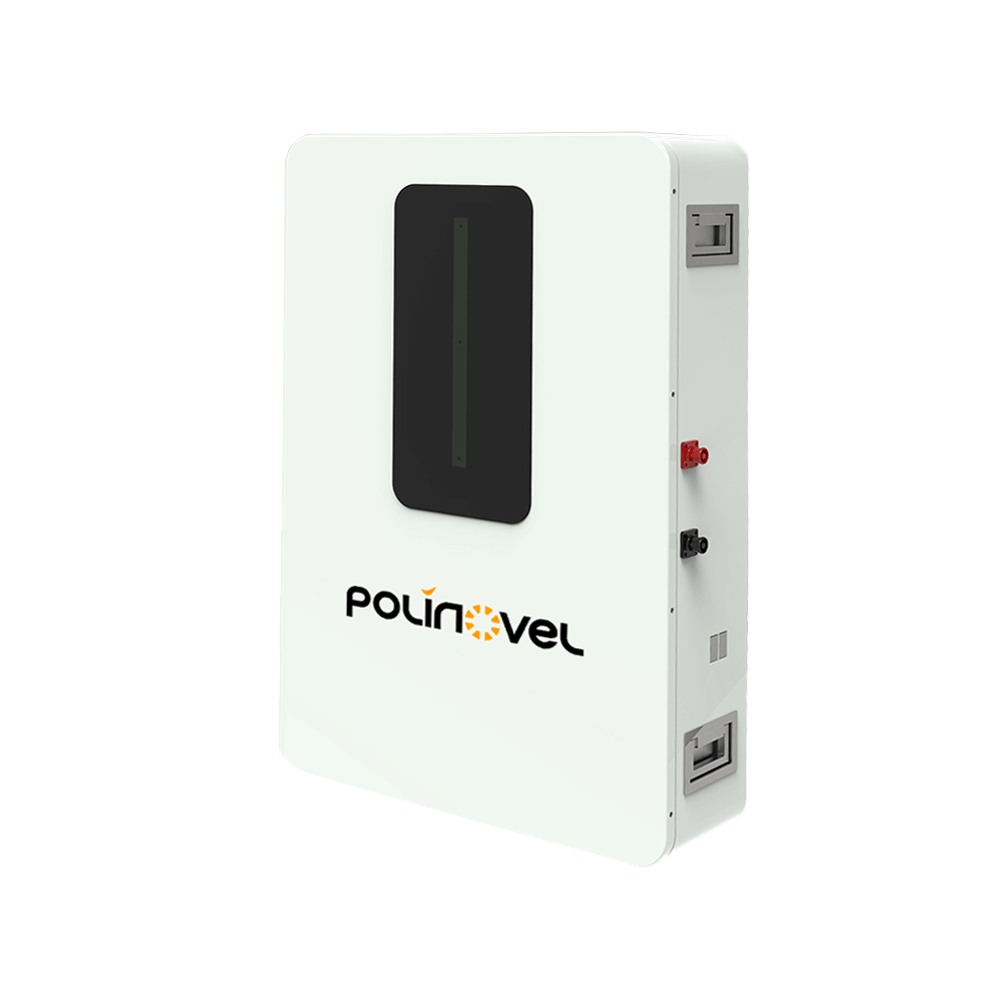

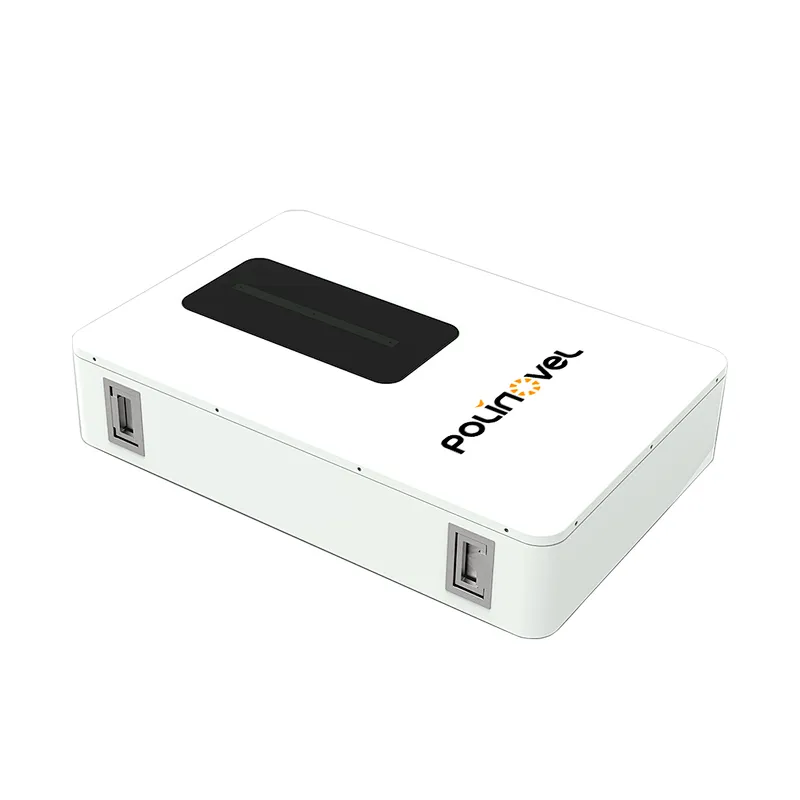

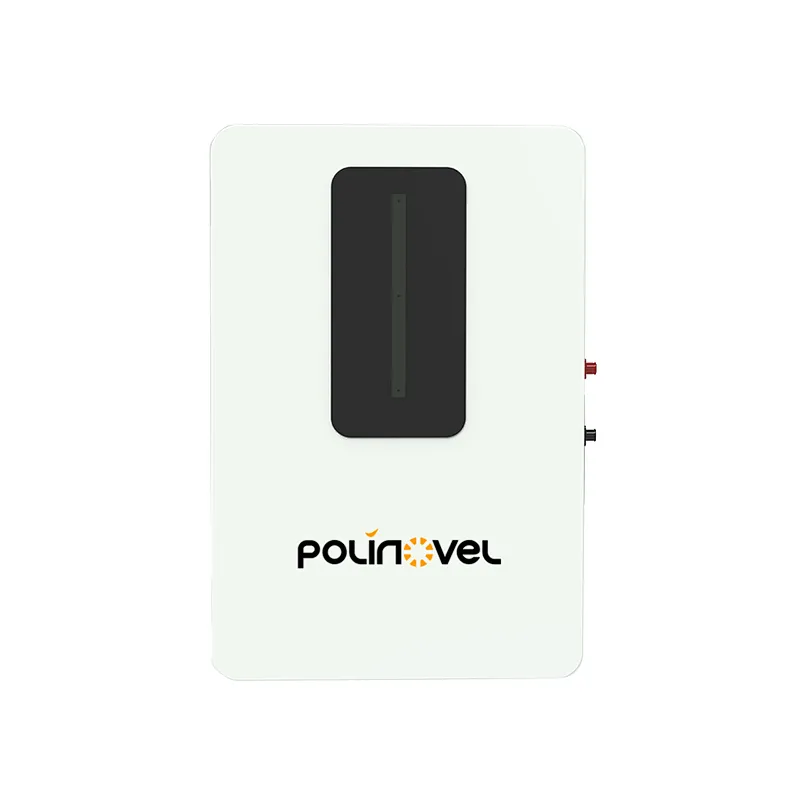

| Model | WALL1000 | |
| Nominal Voltage | 48V (15S) | 51.2V (16S) |
| Nominal Capacity | 200Ah | 200Ah |
| Energy | 9.6KWh | 10.24KWh |

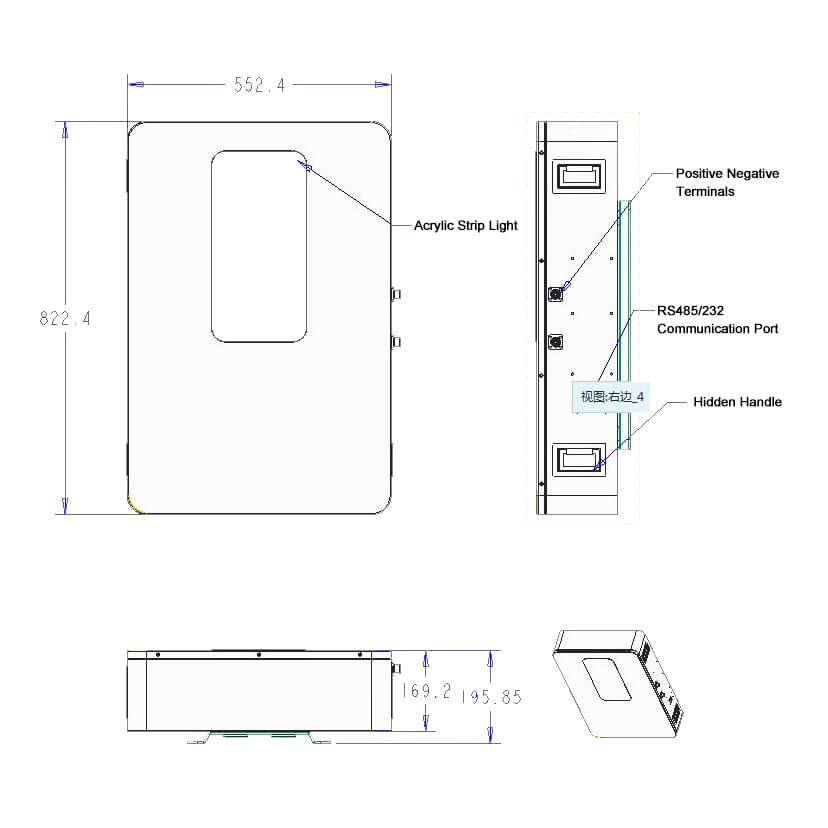

| Dimension (H*W*D) mm | 823*553*170 | 823*553*170 |
| Weight | 87kg | 92kg |
| Recommend Charge Current | 50A | 50A |
| Max. Charge Current | 100A | 100A |
| Max. Constant Discharge Current | 100A/150A | 100A/150A |
| Max. Modules in Parallel | 15pcs in parallel | |
| Communication | RS485, CAN | |
| Battery Type | Lithium Iron Phosphate (LiFePO4) | |
| Self Discharge Per Month | <3% | |
| IP Rating | IP55 | |
| Charge Temperature | 0 to 50 ºC | |
| Discharge Temperature | -20 to 60 ºC | |
| Storage Temperature | 15 to 35 ºC | |

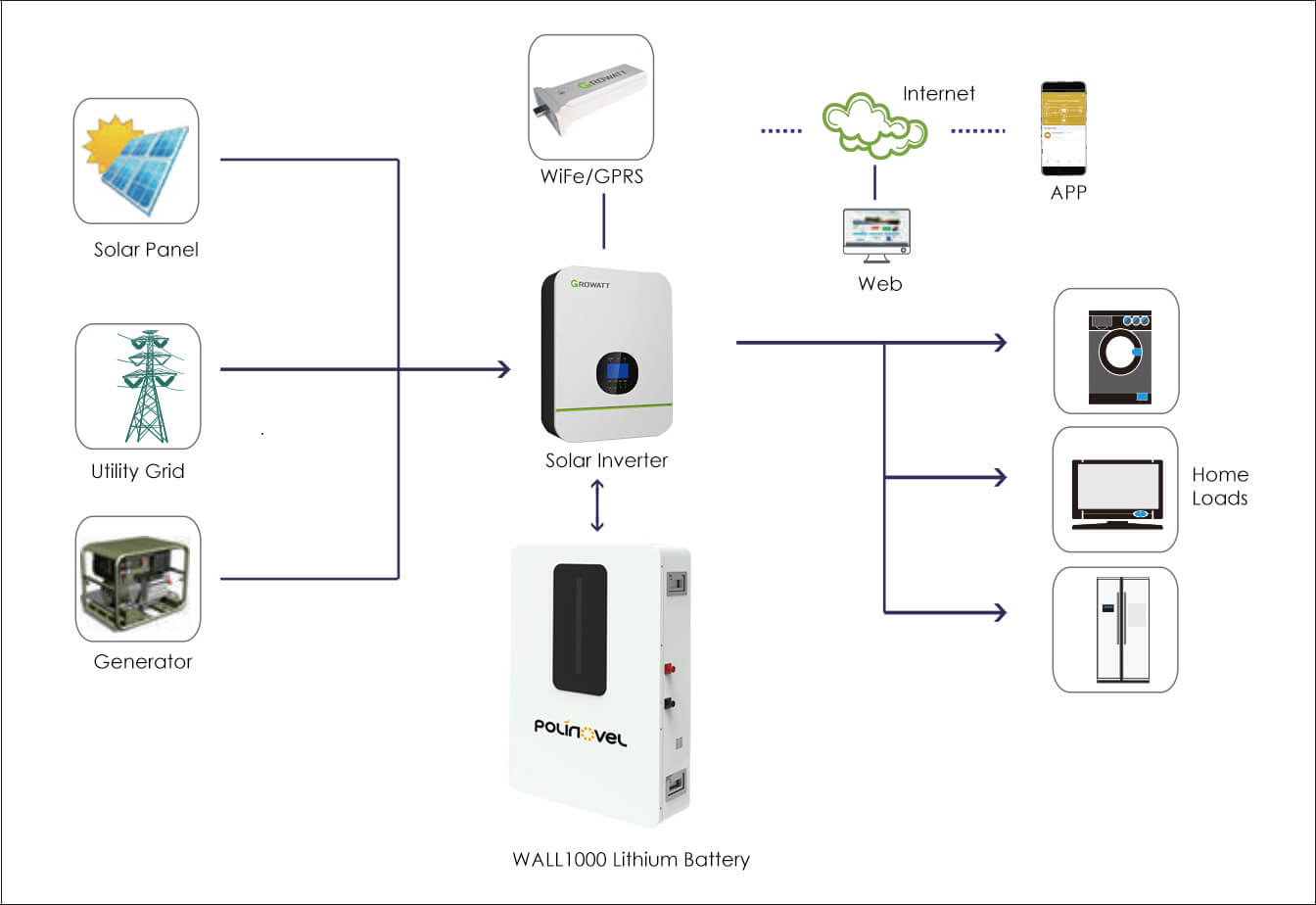

High Compatibility With Most Solar Inverter Brands
Wall-mounted Home Power Storage System Minimize Installation Space
