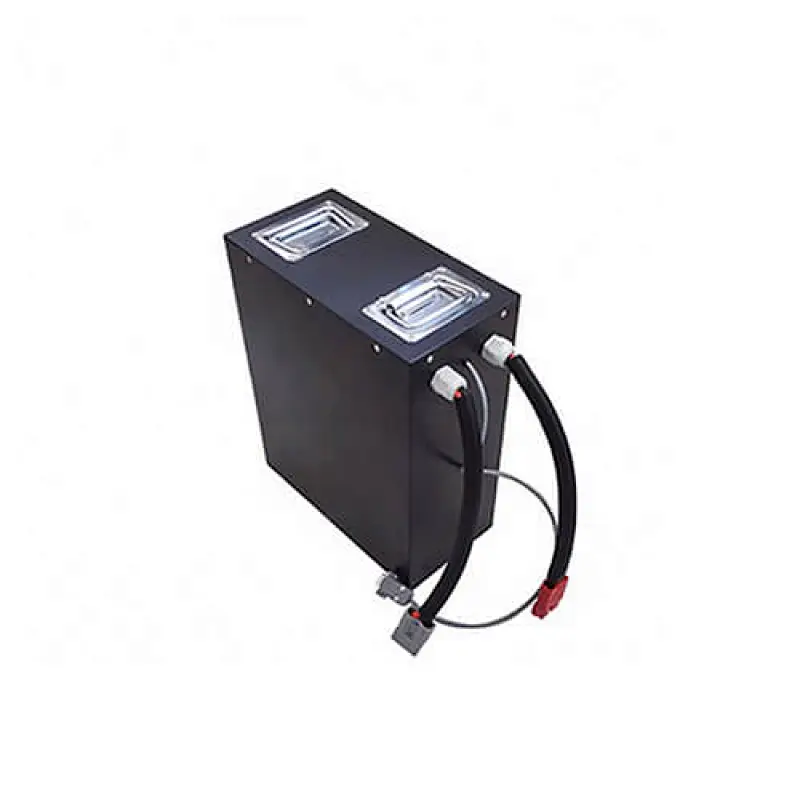

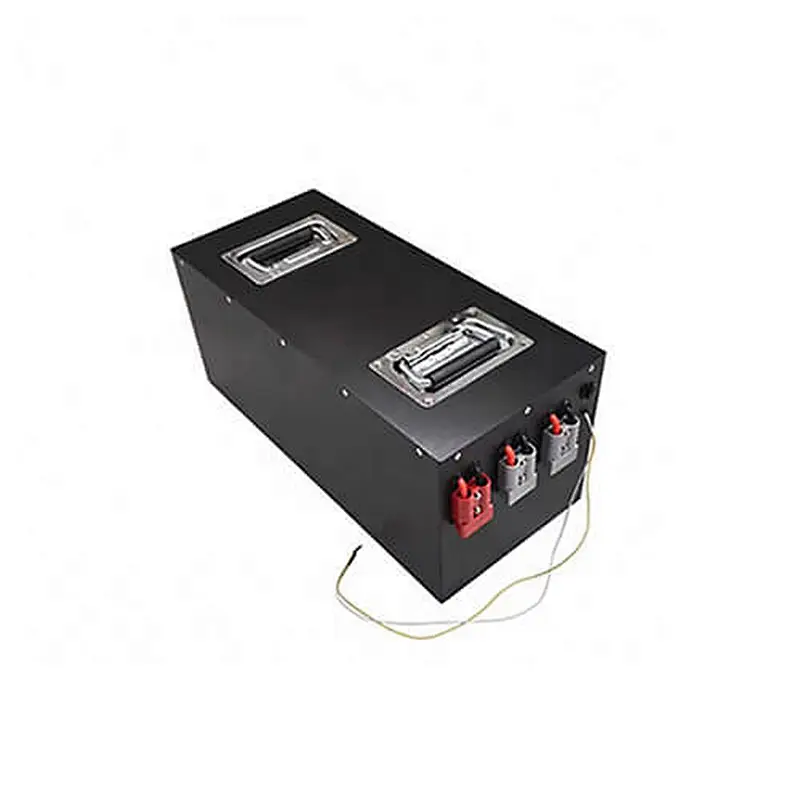

36v 60ah lifepo4 lithium-ion battery

36v 60ah lifepo4 lithium-ion battery

Main Advantages
Good performance in harsh environment
Effective customize technical solution
High quality and punctual delivery
Trustworthy innovative lithium battery manufacturer

Brief Introduction

Lithium-Ion Batteries for Automated Guided Vehicles (AGVs)
Polinovel AGV lithium batteries have considerably greater energy density, making them the best choice, that presents an inherent safety performance and is more energy-efficient with a significantly longer cycle life than lead-acid.

Product Features

Safe: The battery pack integrated Built-in BMS/PCB to protect battery for safe use, no fire, no explosion.
Fast Charge: The lithium battery has no memory effect, allows a highly efficient charge anytime.
Long Cycle Life: Remaining capacity 80% after 2000 cycles.
Powerful: Utilize high quality and high discharge rate lithium battery cells providing more energy.
Customize: Battery voltage, capacity, current, size, etc all can be customized to meet specific AGVs.
Eco-friendly: Polinovel lithium batteries are the ultimate clean energy, no toxic material, no pollution.

Custom Solution
Buit Your Own AGV Battery
With years experience of designing and producing battery packs for transportation applications, Polinovel can tailor-make the lithium battery specification for drop-in replacement for existing battery sizes. It’s easier than ever to upgrade to lithium to supply reliable power and energy across a range of AGV robot needs.

Application
Polinovel offering customizes lithium battery pack specifications, include voltage, capacity, charge-discharge current, size,
form, wires, connectors etc, that are suitable for varity of AGV Robots.

Automated Guided Vehicle: Industrial AGV, Parking AGV, Hospital AGV, Logistic AGV, Parking AGV, Warehouse AGV, Restaurant AGV, Single-way AGV, Unloading AGV, Automated forklift, Automated forklift truck, Material handling AGV, Pallet Mover AGV, Laser AGV, Magnetic AGV, QR Code Inertial Navigation AGV.


Basic Parameter

Nominal Voltage: 38.4V
Nominal Capacity: 60.0Ah
Recommend Charge Voltage: 43.8V
Discharge Cut-Off Voltage: 30V
Charge Current Range: 1 to 60A
Max Continuous Discharge Current: 60A
Peak Discharge Current: 120A @ 3S
Dimension: 290mm*150mm*360mm
Weight: 24kg

Curve Reference
