Product Description
Lithium-Ion Batteries for Automated Guided Vehicles (AGVs)
Polinovel AGV lithium batteries have considerably greater energy density, making them the best choice, that presents an inherent safety performance and is more energy-efficient with a significantly longer cycle life than lead-acid.

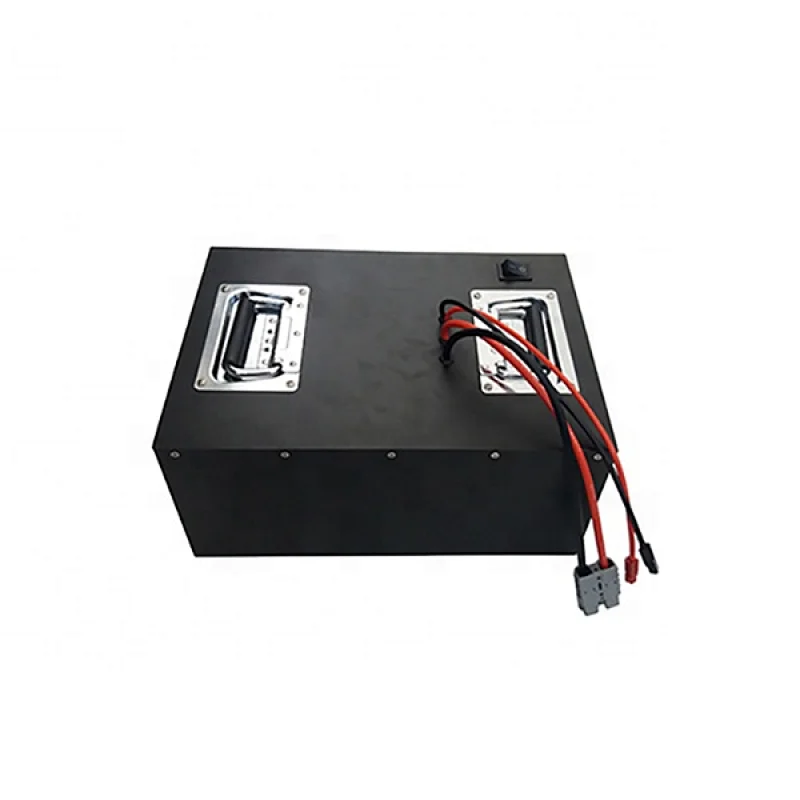

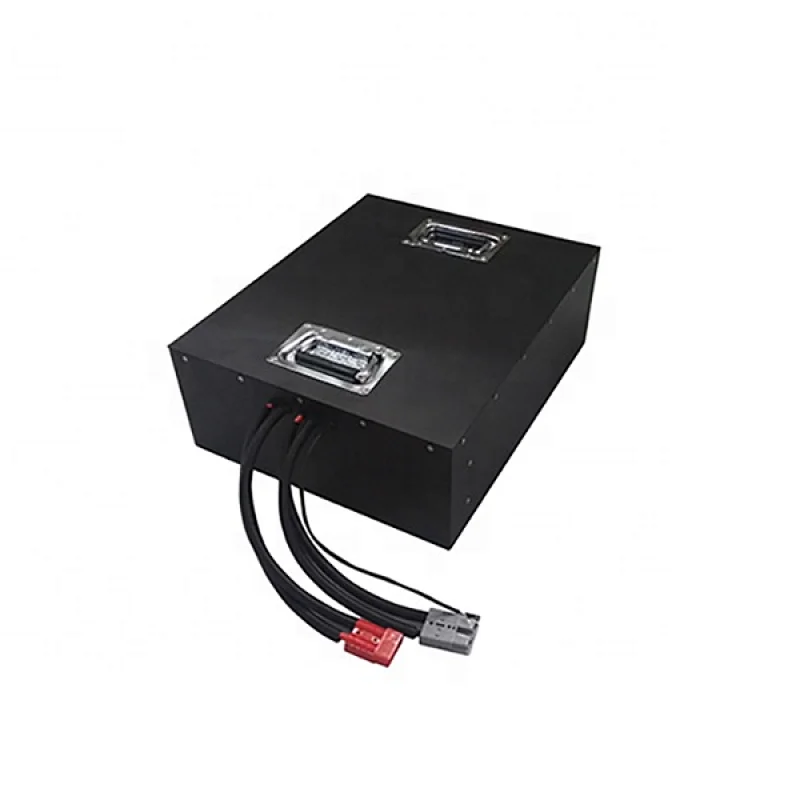

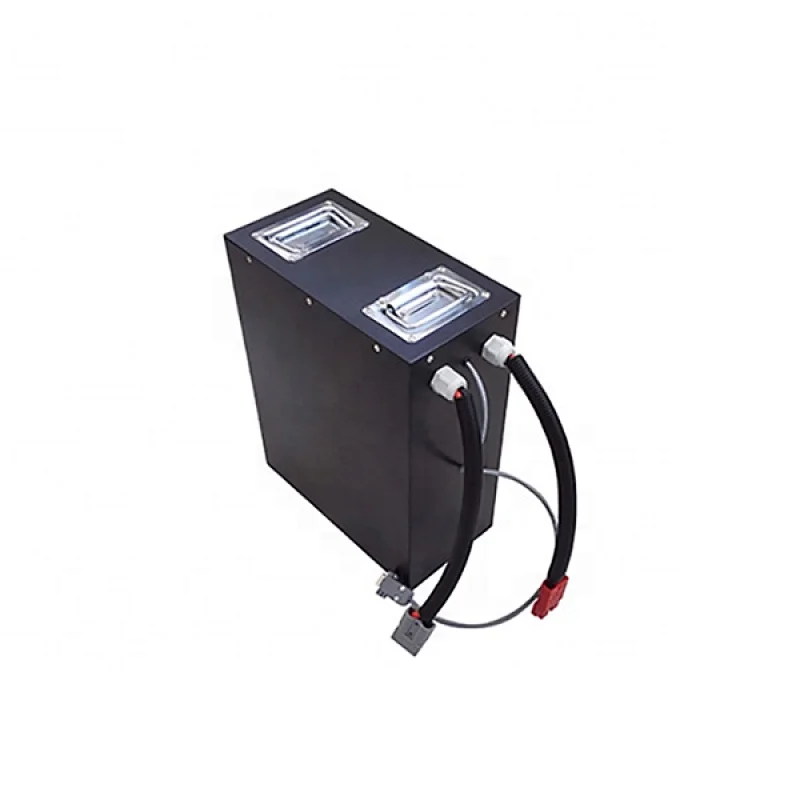

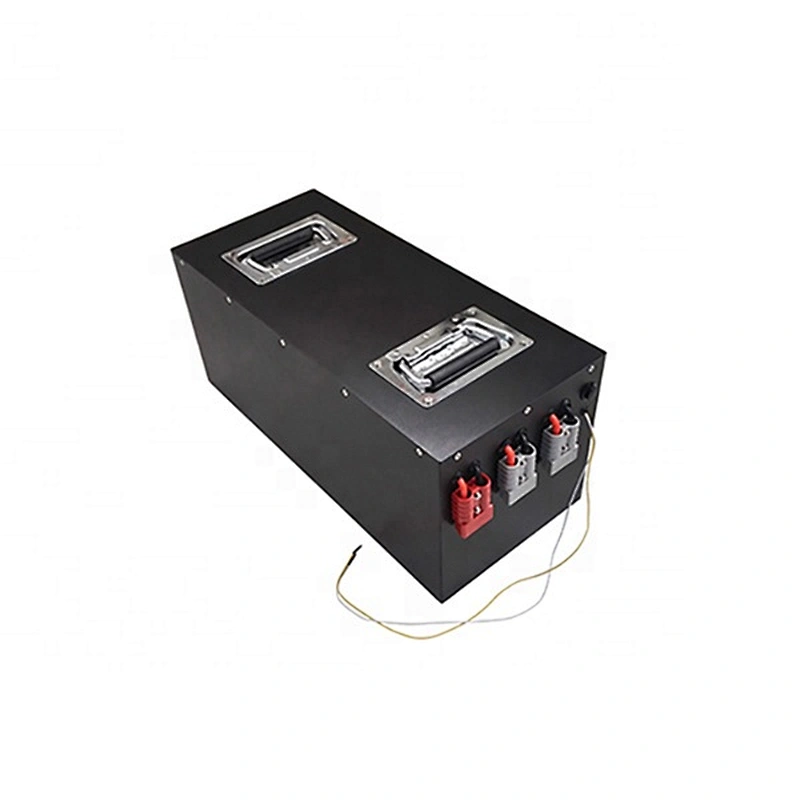

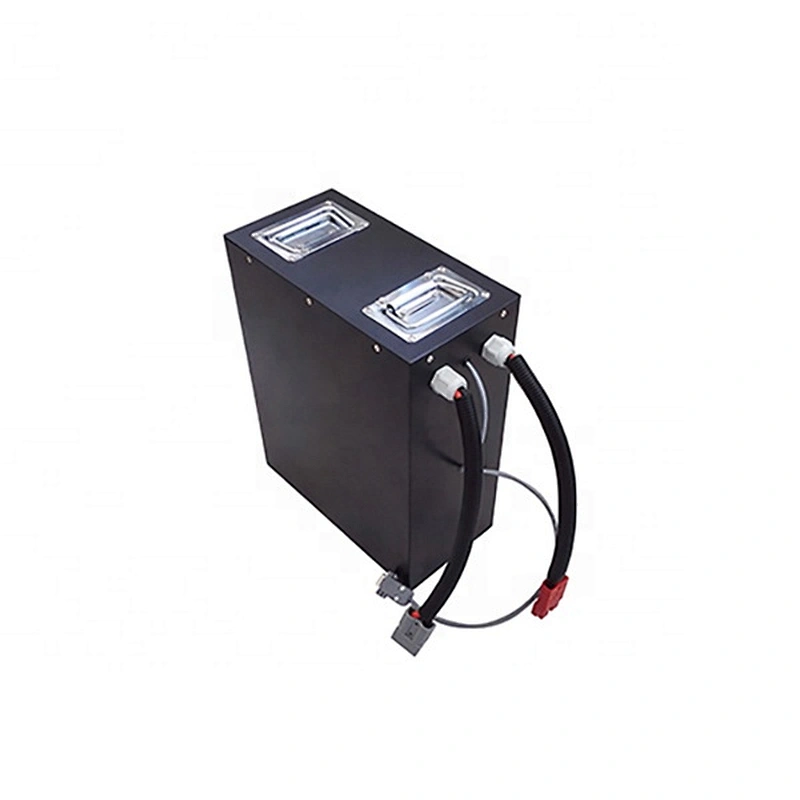

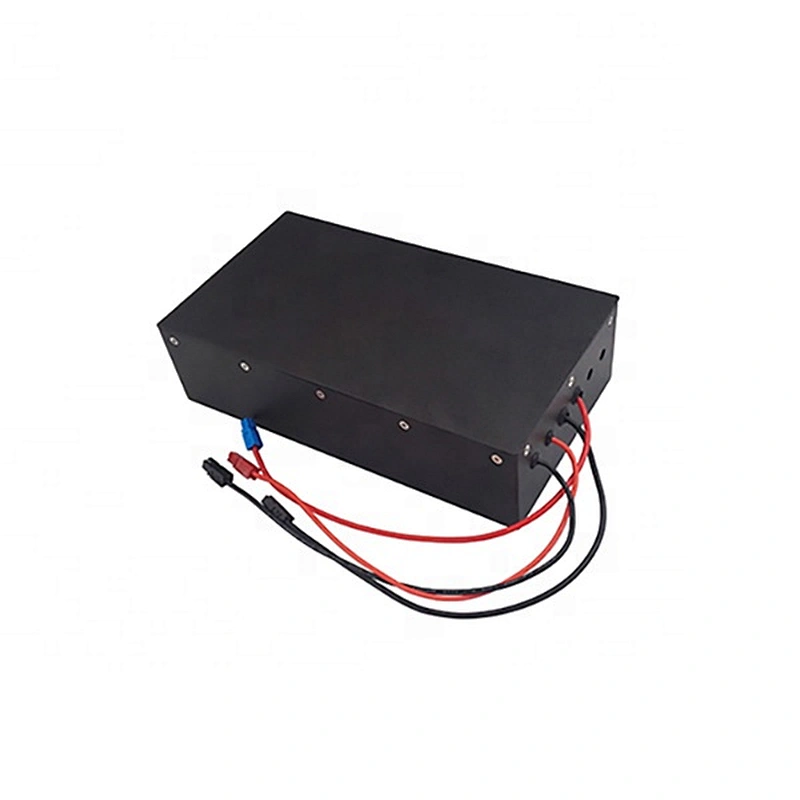

This 24V 60Ah lithium AGV battery uses high quality cell configuration, built-in BMS allows safe and stable charge and discharge.
Manufacturer | Polinovel |
Model | AGV2460 |
Nominal Voltage | 25.6V |
Nominal Capacity | 60Ah |
Energy | 1536Wh |
Recommend Charge Voltage | 29.2V |
Discharge Cut-off Voltage | 20.0V |
Charge Current Range | 0.1 to 60A |
Standard Discharge Current | 20A |
Max Continuous Discharge Current | 60A |
Peak Discharge Current (<3s) | 180A |
Weight | 15.0kg |
Dimension (LxWxH) | 450*160*140mm |
Battery Type | LiFePO4 |
Connector | Anderson (customizable) |
Charge Temperature Range | 0~45 ºC |
Discharge Temperature Range | -20~60 ºC |
Storage Temperature Range | 0-40ºC |
Humidity | Operation:<85%RH; Storage <50%RH |
Product Features
Safe
The battery pack integrated Built-in BMS/PCB to protect battery for safe use, no fire, no explosion.
Fast Charge
The lithium battery has no memory effect, allows a highly efficient charge anytime.
Long Cycle Life
Remaining capacity 70~80% after 1000~1500 cycles.
Powerful
Utilize high quality and high discharge rate lithium battery cells providing more energy.
Customize
Battery voltage, capacity, current, size, etc all can be customized to meet specific AGVs.
Eco-friendly
Polinovel lithium batteries are the ultimate clean energy, no toxic material, no pollution.

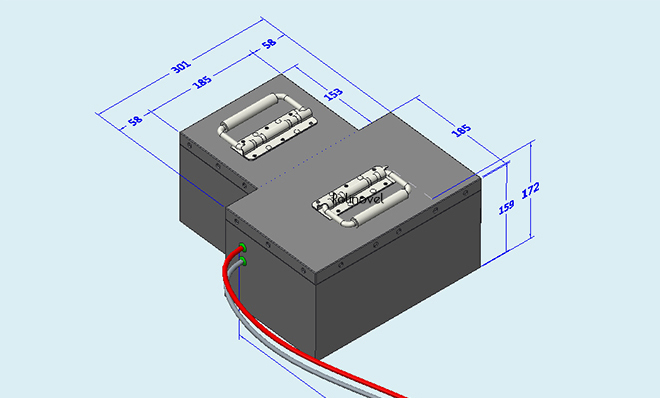

Custom Solution
Buit Your Own AGV Battery
With years experience of designing and
producing battery packs for transportation applications, Polinovel can tailor-make the lithium battery specification for drop-in replacement for existing battery sizes. It’s easier than ever to upgrade to lithium to supply reliable power and energy across a range of AGV robot needs.

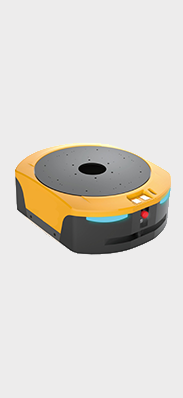

Application
Polinovel offering customizes lithium battery pack specifications, include voltage, capacity, charge-discharge current, size, form, wires, connectors etc, that are suitable for varity of AGV Robots.

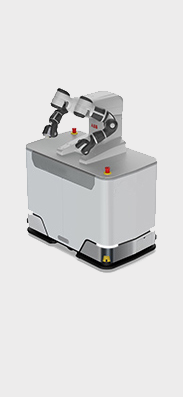

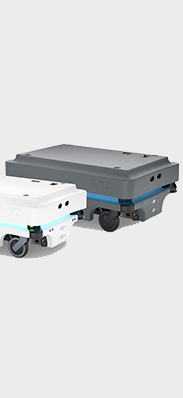

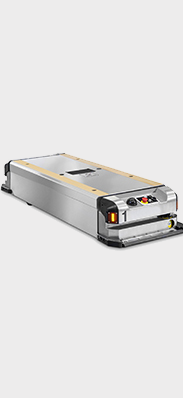

Automated Guided Vehicle: Industrial AGV, Parking AGV, Hospital AGV, Logistic AGV, Parking AGV, Warehouse AGV, Restaurant AGV, Single-way AGV, Unloading AGV, Automated forklift, Automated forklift truck, Material handling AGV, Pallet Mover AGV, Laser AGV, Magnetic AGV, QR Code Inertial Navigation AGV.

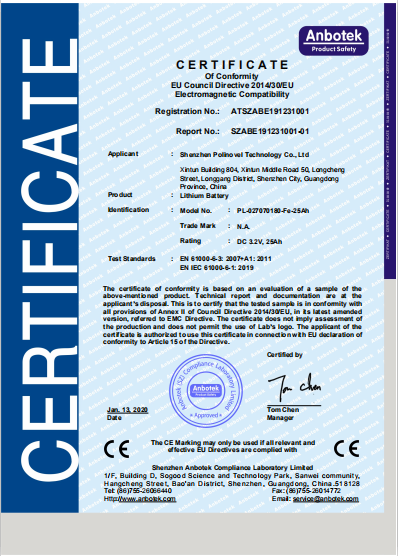

Certificate
Polinovel take safety seriously, we strive to produce and provide the safest lithium battery to customers. Our lithium battery has been rigorously tested and certified to be safely used in wide applications around the world.
CE

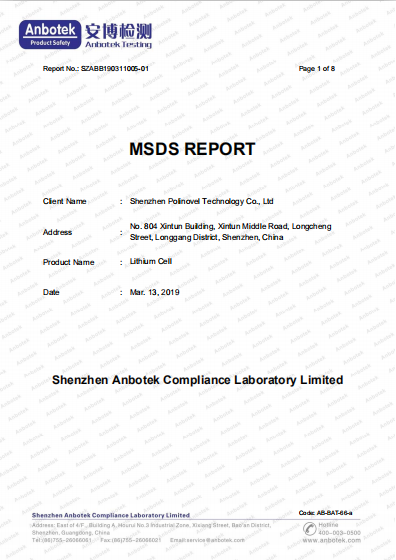

MSDS

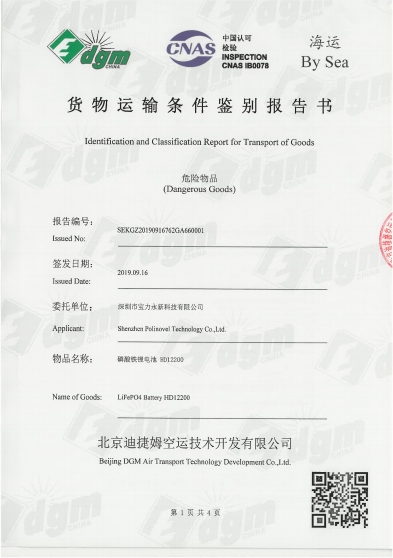

UN38.3

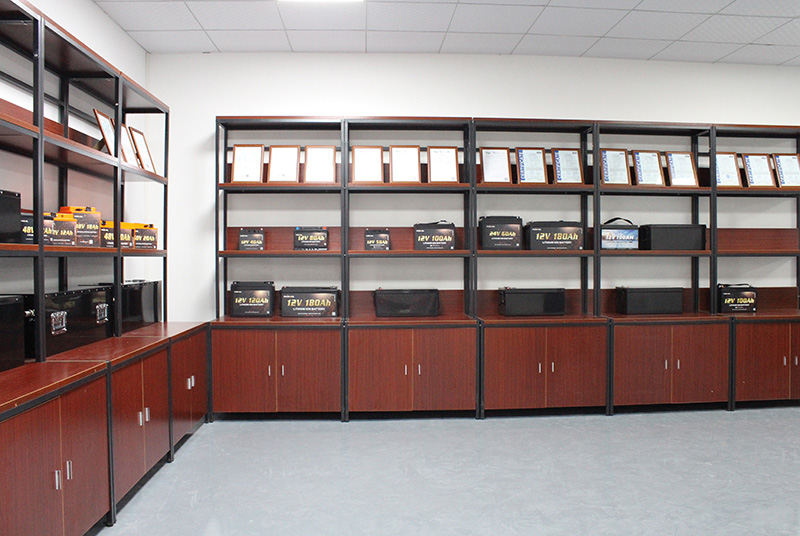

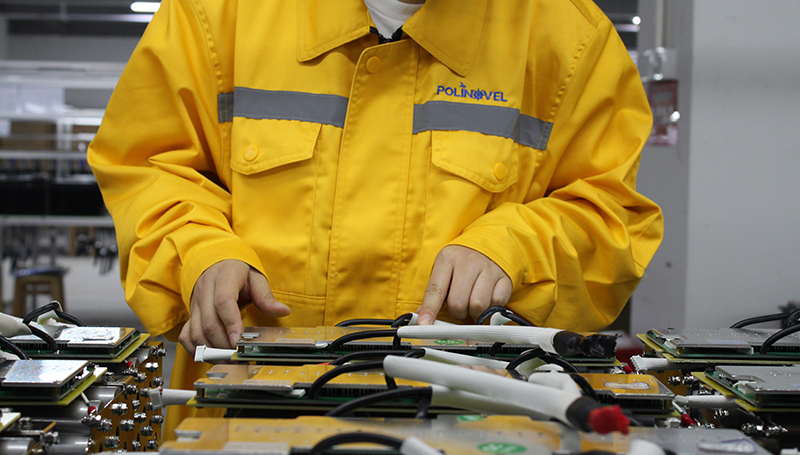

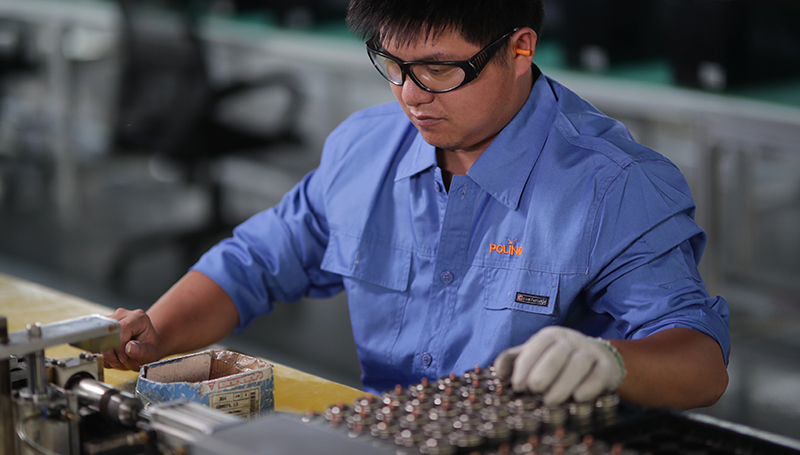

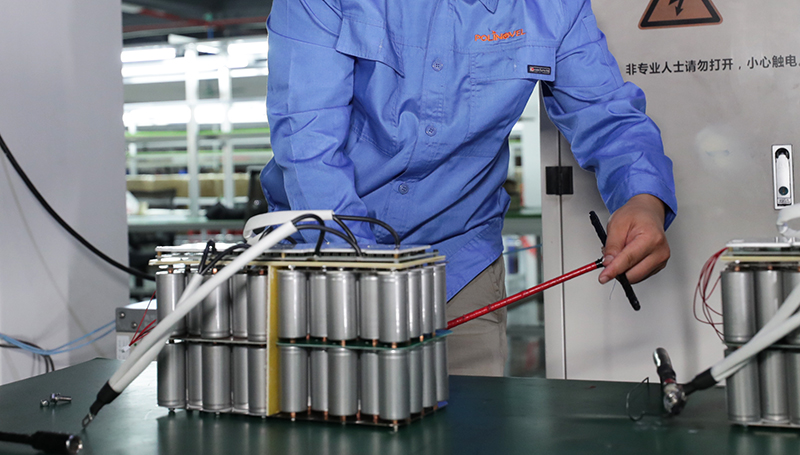

Company Introduction
FAQ
Q1: Are you a factory?
A1: Yes, we are the original factory, specializing in reliable and safe lithium batteries for more than 7 years.
Q2: Can I place a sample order?
A2: Yes, we accept sample order to test and check the quality, battery can be made as required.
Q3: Do you have MOQ?
A3: No limited, but the more you order, the better price you will get.
Q4: What is your delivery date?
A4: Usually 3-5 weeks after payment confirmed subject to exact order quantity.
Q5: Which shipping method you usually take?
A5: Generally, small volume via express or air. Bulk order quantity via sea.
Q6: What kind of packing you provide?
A6: Standard export carton or wooden case according to battery size and weight, the package will be strong enough for
long-distance transport.
We sincerely look forward to establishing long term cooperation relationship with you, if you have any questions, please do not hesitate to contact us!
