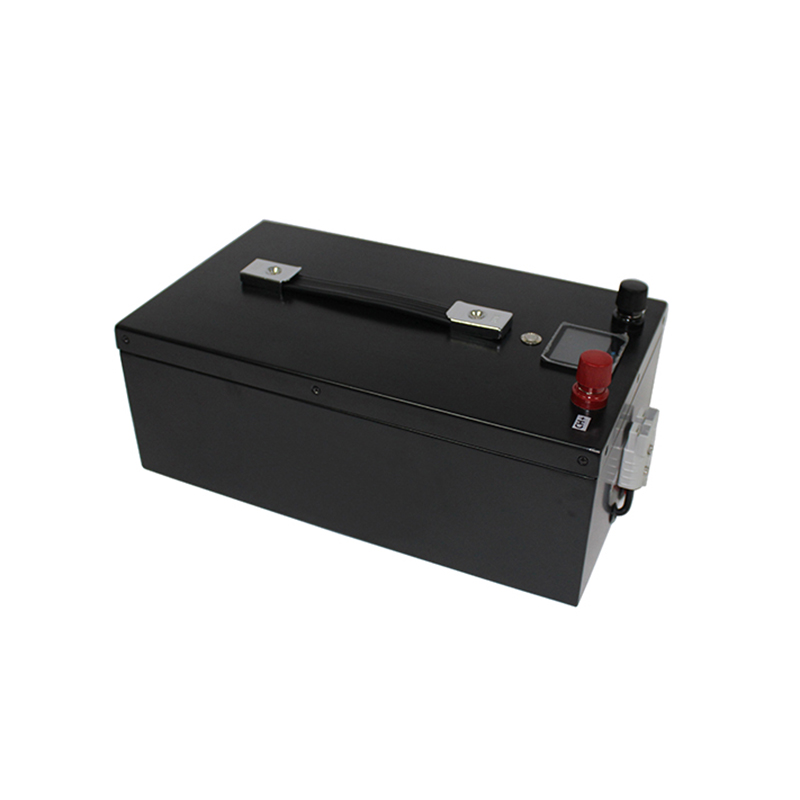

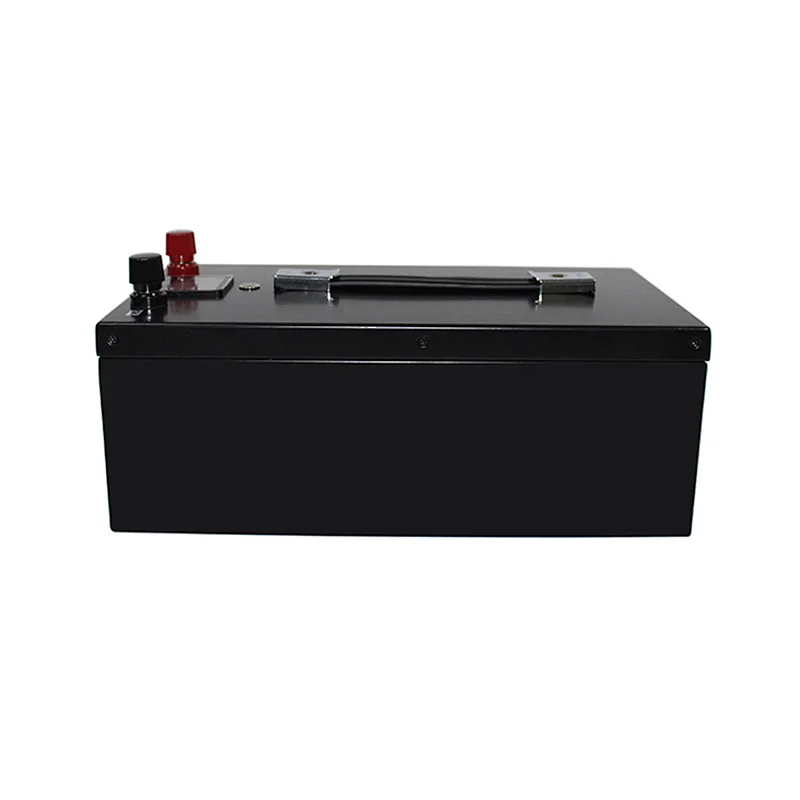

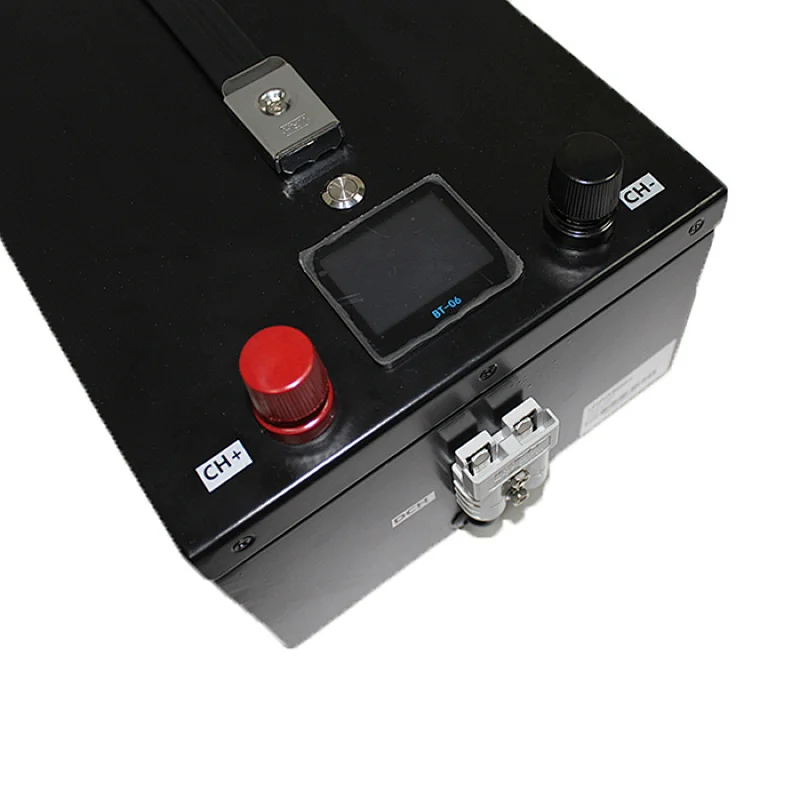

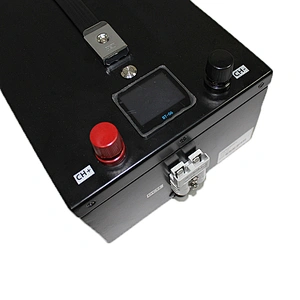

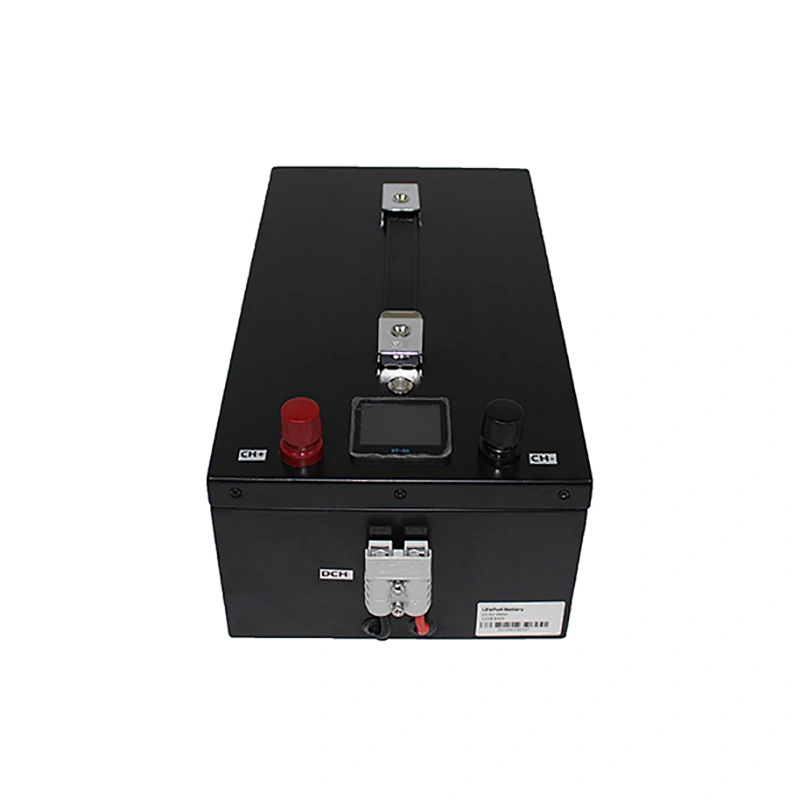

24v 48ah lifepo4 lithium-ion AGV battery

24v 48ah lifepo4 lithium-ion AGV battery

Model NO.: AGV2448
Delivery:: FOB, CIF
Minimum order quantity:: 1 unit
Supply Ability:: 50000 unit / Month
Country of Origin:: Shenzhen, China
Stock Time:: 25 to 40 Days

Quantity:

Product Description

Product Description

Lithium-Ion Batteries for Automated Guided Vehicles (AGVs)

Polinovel AGV lithium batteries have considerably greater energy density, making them the best choice, that presents an inherent safety performance and is more energy-efficient with a significantly longer cycle life than lead-acid.

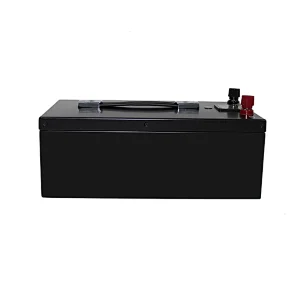

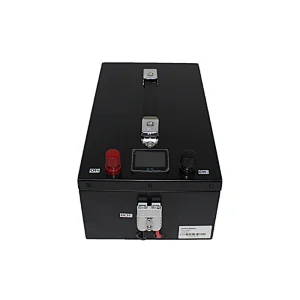

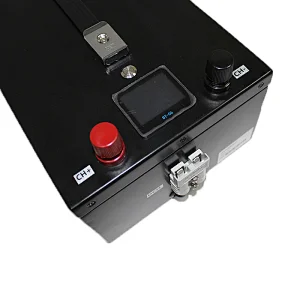

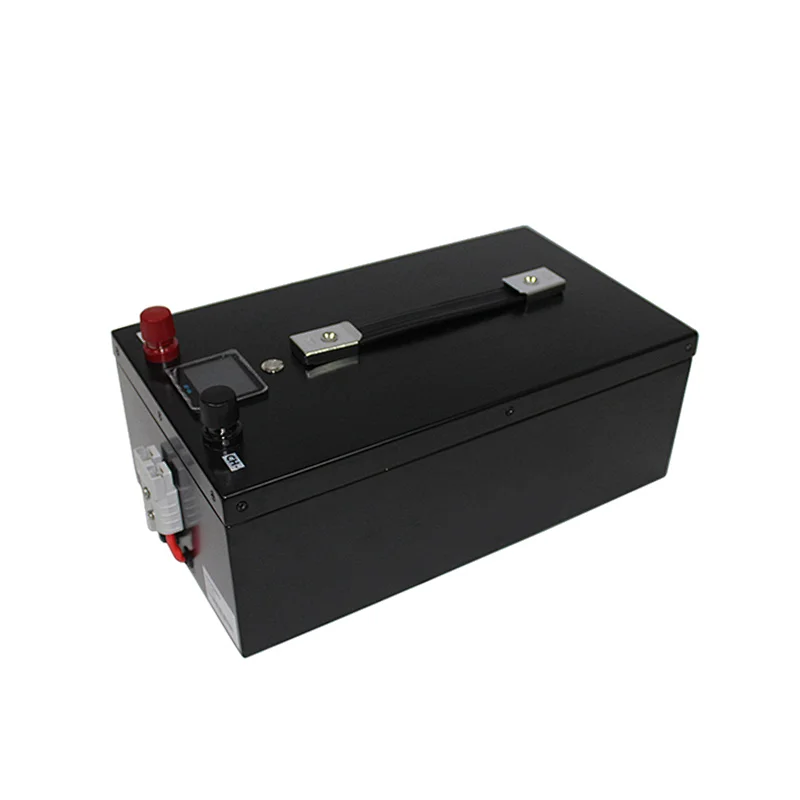

This 24V 48Ah lithium AGV battery uses high quality cell configuration, built-in BMS allows safe and stable charge and discharge.

Manufacturer	Polinovel
Model	AGV2448
Nominal Voltage	25.6V
Nominal Capacity	48Ah
Energy	1228Wh
Recommend Charge Voltage	29.2V
Discharge Cut-off Voltage	20.0V
Charge Current Range	0.1 to 20A
Standard Discharge Current	20A
Max Continuous Discharge Current	45A
Peak Discharge Current (<3s)	80A
Weight	12.0kg
Dimension (LxWxH)	350200130mm
Battery Type	LiFePO4
Connector	Anderson (customizable)
Charge Temperature Range	0~45 ºC
Discharge Temperature Range	-20~60 ºC
Storage Temperature Range	0-40ºC
Humidity	Operation:<85%RH; Storage <50%RH

Product Features

Safe

The battery pack integrated Built-in BMS/PCB to protect battery for safe use, no fire, no explosion.

Fast Charge

The lithium battery has no memory effect, allows a highly efficient charge anytime.

Long Cycle Life

Remaining capacity 70~80% after 1000~1500 cycles.

Powerful

Utilize high quality and high discharge rate lithium battery cells providing more energy.

Customize

Battery voltage, capacity, current, size, etc all can be customized to meet specific AGVs.

Eco-friendly

Polinovel lithium batteries are the ultimate clean energy, no toxic material, no pollution.

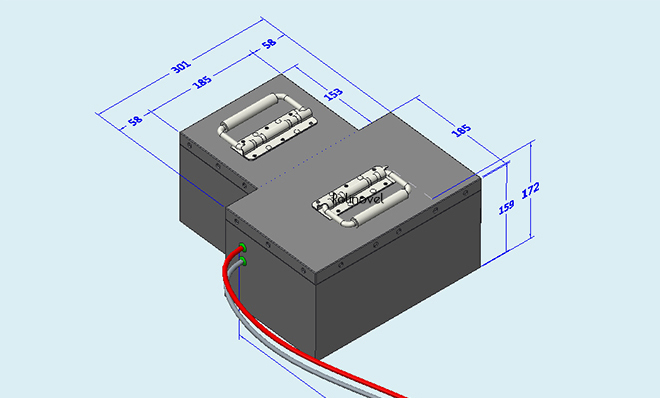

Custom Solution

Built Your Own AGV Battery

With years experience of designing and producing battery packs for transportation applications, Polinovel can tailor-make the lithium battery specification for drop-in replacement for existing battery sizes. It’s easier than ever to upgrade to lithium to supply reliable power and energy across a range of AGV robot needs.

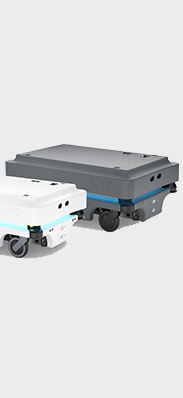

Application

Polinovel offering customizes lithium battery pack specifications, include voltage, capacity, charge-discharge current, size,
form, wires, connectors etc, that are suitable for varity of AGV Robots.

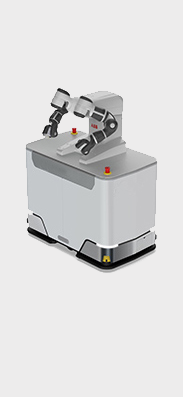

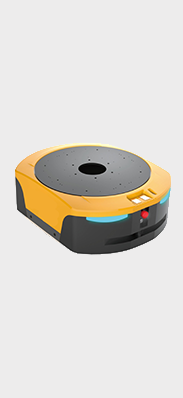

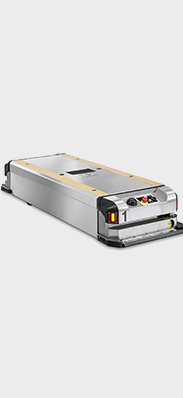

Automated Guided Vehicle: Industrial AGV, Parking AGV, Hospital AGV, Logistic AGV, Parking AGV, Warehouse AGV, Restaurant AGV, Single-way AGV, Unloading AGV, Automated forklift, Automated forklift truck, Material handling AGV, Pallet Mover AGV, Laser AGV, Magnetic AGV, QR Code Inertial Navigation AGV.

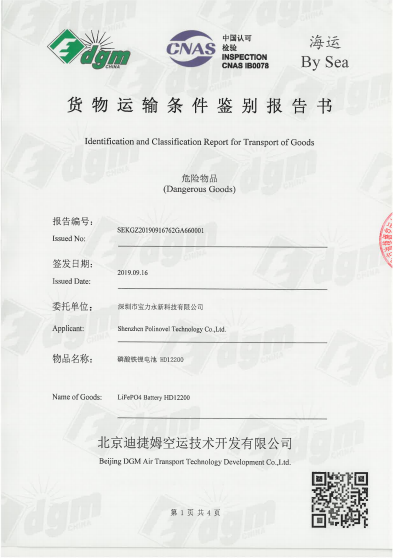

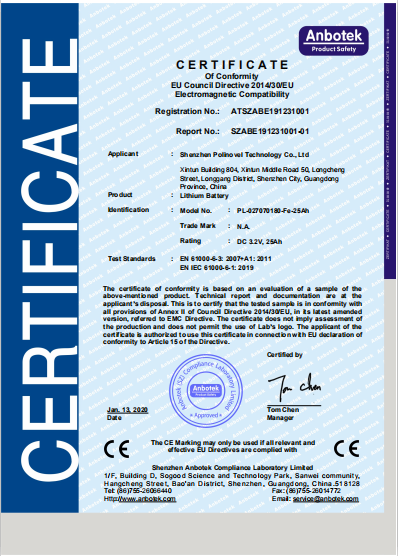

Certificate

Polinovel take safety seriously, we strive to produce and provide the safest lithium battery to customers. Our lithium battery has been rigorously tested and certified to be safely used in wide applications around the world.

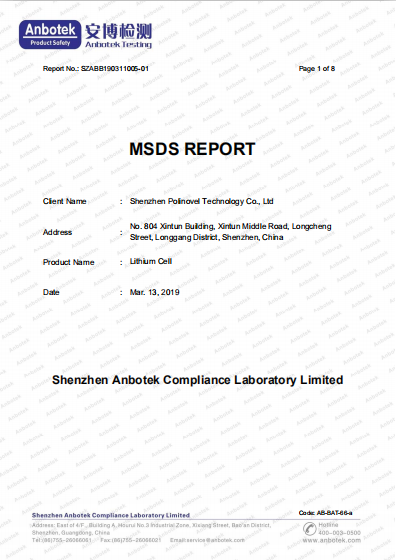

MSDS

UN38.3

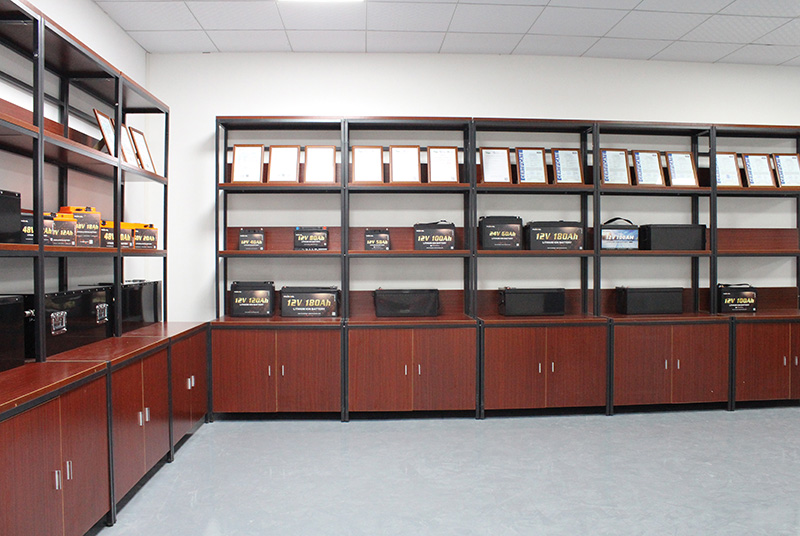

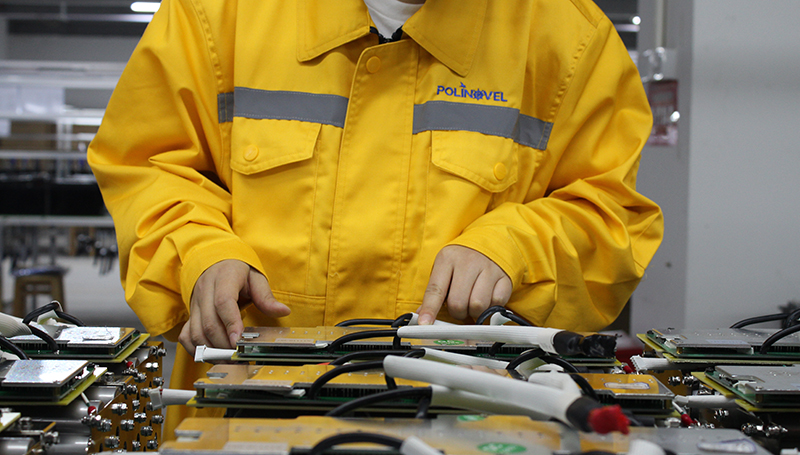

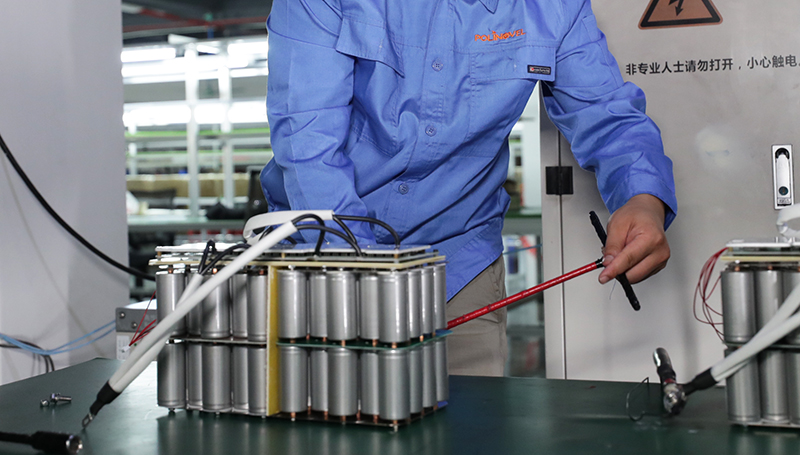

Company Introduction

FAQ

Q1: Are you a factory?
A1: Yes, we are the original factory, specializing in reliable and safe lithium batteries for more than 7 years.

Q2: Can I place a sample order?
A2: Yes, we accept sample order to test and check the quality, battery can be made as required.

Q3: Do you have MOQ?
A3: No limited, but the more you order, the better price you will get.

Q4: What is your delivery date?
A4: Usually 3-5 weeks after payment confirmed subject to exact order quantity.

Q5: Which shipping method you usually take?
A5: Generally, small volume via express or air. Bulk order quantity via sea.

Q6: What kind of packing you provide?
A6: Standard export carton or wooden case according to battery size and weight, the package will be strong enough for
long-distance transport.

We sincerely look forward to establishing long term cooperation relationship with you, if you have any questions, please do not hesitate to contact us!
